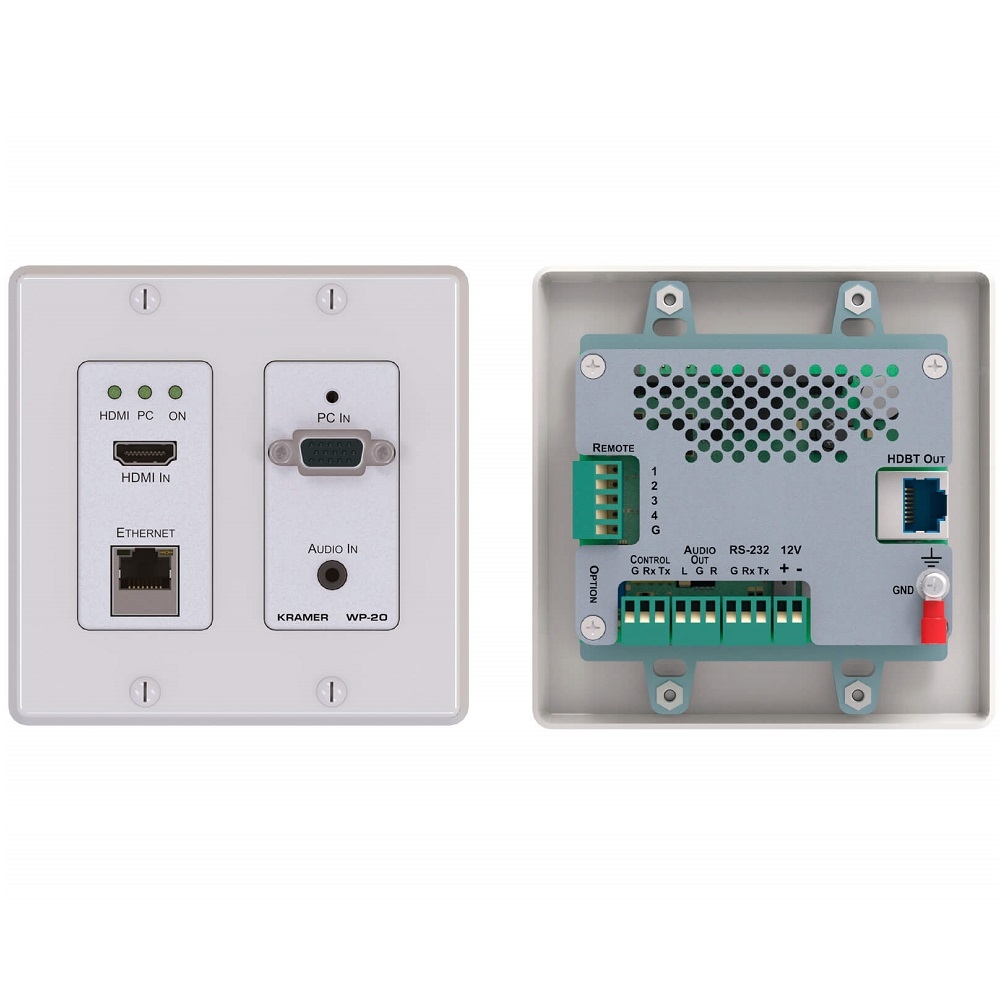

Bộ chuyển mạch HDBT gắn tường WP-20

Bộ chuyển mạch HDBT gắn tường WP-20

Mô tả ngắn

Simple and Powerful Maestro 1.0 Room Automation
Max. Data Rate — 10.2Gbps (3.4Gbps per graphic channel)
Resolution Support up to 4K@60Hz (4:2:0)
Automatic Live Input Detection
Automatic Input Selection

liên hệ mua hàng
Hotline: 0918 642 886

WP−20 is a 4K UHD, HDBaseT active wall plate with step−in auto switcher for HDMI, VGA and analog audio signals that supports resolutions up to 4K@60Hz (4:2:0). The device has EDID management, easy control options and audio embedding. The unit is a fully−featured step−in auto−switcher with the convenience and simplicity of a wall plate. Designed for deployment in any size room, the WP−20 is easy to install with browser−based configuration and single PoE cable for Ethernet connectivity and powering.* DECORA® is a registered trademark of Leviton Manufacturing Co., Inc

-Simple and Powerful Maestro Room Automation — Intuitive user interface enables you to fully automate your meeting room elements. Configure lights, shades, devices and more to be activated by an extensive range of triggers, including input/output connectivity, routing, and button pressing. By minimizing user intervention, Maestro room automation saves meeting prep time and minimizes human error before presentations.

- Max. Data Rate — 10.2Gbps (3.4Gbps per graphic channel).

- Max. Resolution — 4K@60Hz (4:2:0) and WUXGA.

- HDTV Compatible.

- HDCP Compliant — Works with sources that support HDCP repeater mode.

- HDMI Support — Deep Color, x.v.Color™ and 3D.

- Automatic Live Input Detection — Based on video clock presence.

- Automatic Input Selection — Based on manual selection or last connected input.

- Automatic Analog Audio Detection & Embedding.

- EDID Pass–through — Pass–through algorithm ensures Plug and Play operation for HDMI source and display systems.

- Kramer Equalization & re–Klocking™ Technology — Rebuilds the digital signal to travel longer distances.

- Range — Up to 130m (430ft) at normal mode (2K), up to 100m at normal mode (4K); up to 180m (590ft) ultra mode (1080p @60Hz @24bpp) when using BC–UNIKAT cables.

- Lockable EDID.

- Flexible Control Options — Via Kramer Protocol 3000, Ethernet and embedded Web pages over RS–232.

- Digital Audio Format Support.

- Mounting Option — For wall mounting, use Kramer's OWB–2G.

INPUTS

1 HDMI on an HDMI connector, 1 VGA on a 15–pin HD (F) connector, 1 unbalanced stereo audio on a 3.5mm mini jack



OUTPUTS

1 HDBaseT on an RJ–45 connector, 1 unbalanced stereo audio on a 3.5mm mini jack



PORTS

1 RS–232 3–pin terminal block, 1 Ethernet on an RJ–45 connector



CONTROLS

Remote switches for input switching and volume control, reset switch



STANDARDS

HDMI with Deep Color, x.v.Color™ and 3D

HDCP—works with sources that support HDCP repeater mode

HDBT certified



MAXIMUM ANALOG AUDIO LEVEL

3.1Vpp



THD

0.013%



SNR

–70dB



ROOM AUTOMATION

Kramer Maestro V1.0



SUPPORTED WEB BROWSERS

Windows 7 and higher: Internet Explorer (32/64 bit) version 11, Firefox version 30, Chrome version 35

MAC: Chrome version 35, Firefox version 27, Safari version 7



MAXIMUM TRANSMISSION DISTANCE

180m (590ft) up to 1080p @60Hz @24bpp in extended mode, 130m (430ft) up to 1080p @60Hz @36bpp in normal mode



POWER CONSUMPTION

12V DC, 850mA



OPERATING TEMPERATURE

0° to +40°C (32° to 104°F)



STORAGE TEMPERATURE

–40° to +70°C (–40° to 158°F)



HUMIDITY

10% to 90%, RHL non–condensing



COOLING

Convection



ENCLOSURE TYPE

Aluminum



ENVIRONMENTAL REGULATORY COMPLIANCE

RoHs and WEEE



VIBRATION

ISTA 1A in carton (International Safe Transit Association)



COMPLIANCE STANDARDS

CE



INCLUDED ACCESSORIES

Power adapter



OPTIONS

Faceplates: WP–20–BLNK(W) P/N 68–80371099, WP–20–BLNK(B) P/N 68–80371199



WARRANTY

7 years parts and labor



PRODUCT DIMENSION

US: 11.59cm x 5.10cm x 11.43cm (4.56" x 2.01" x 4.50" ) W, D, H

UK: 15.10cm x 4.00cm x 8.60cm (5.94" x 1.57" x 3.39" ) W, D, H

EU: 15.10cm x 4.00cm x 8.00cm (5.94" x 1.57" x 3.15" ) W, D, H



PRODUCT WEIGHT

US: 0.2kg (0.5lbs) approx.

UK: 0.3kg (0.6lbs) approx.

EU: 0.3kg (0.6lbs) approx.

Download
