Mounts Under the Table
Modular Design

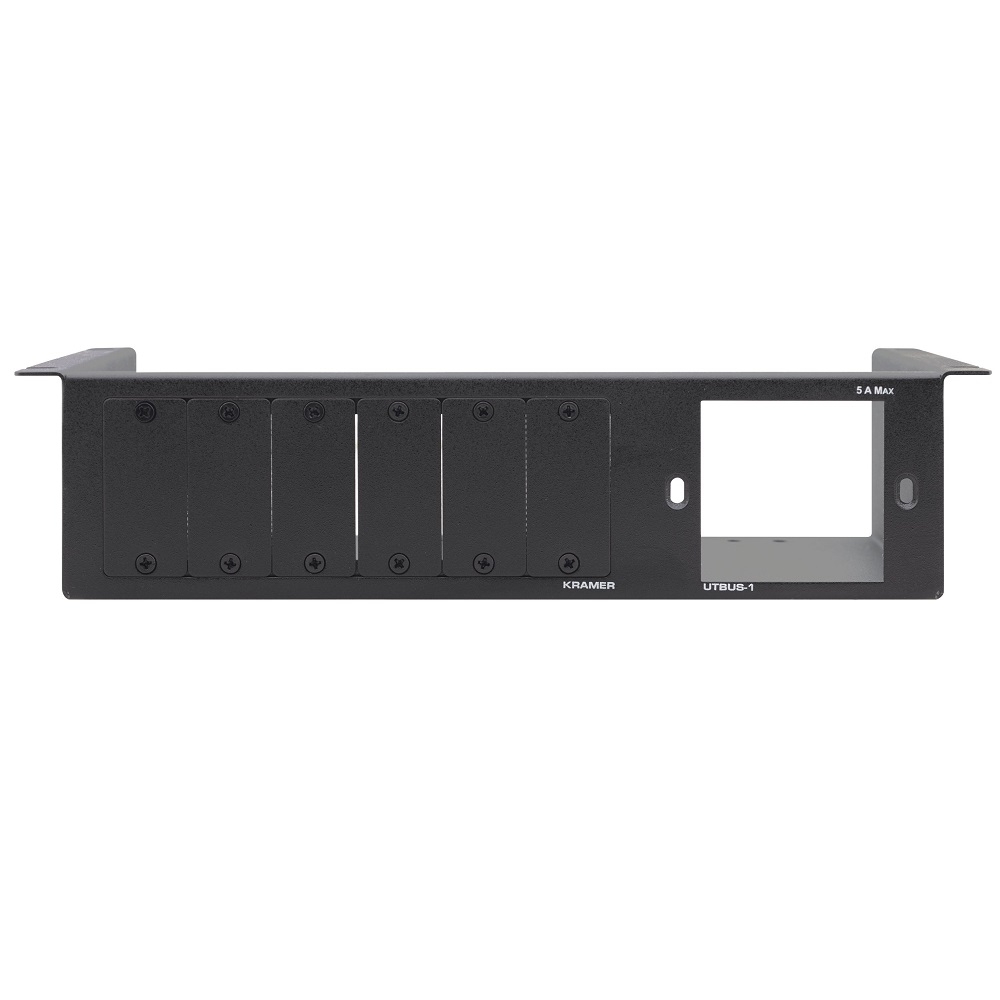

The UTBUS−1xl is the enclosure of a new modular system. A complete UTBUS system requires the enclosure, a power socket, inserts and a power cord.
NOTE: The UTBUS enclosure, power socket, power cord & inserts are purchased separately.
- Power Sockets — 8 different "TS" single power socket options are available to accommodate the power requirements worldwide.
- Power Cord — 8 different "C–AC" single power cords for each power socket.
- Insert Slots — 6.
- Installation Requirement — Requires 25.0cm x 13.7cm (9.84" x 5.4") of free space beneath the table.
- Weight — 0.6kg (1.32lbs) approx.
POWER SOURCE (AC POWER LIMITS)
Universal: 100–240V AC, 50/60Hz, 5A
USA: 100–240V AC, 50/60Hz, 5A
UK: 100–240V AC, 50/60Hz, 5A
Germany and EU: 100–240V AC, 50/60Hz, 5A
Belgium and France: 100–240V AC, 50/60Hz, 5A
South Africa: 100–240V AC, 50/60Hz, 5A
Australia: 100–240V AC, 50/60Hz, 5A
FUSE RATING
T 6.3A 250V
INCLUDED ACCESSORIES
Self locking ties, wood screws
OPTIONS
Passive wall plate inserts and interfaces, power cord
PRODUCT DIMENSION
27.50cm x 10.20cm x 6.50cm (10.83" x 4.02" x 2.56" ) W, D, H
PRODUCT WEIGHT
2.0kg (4.4lbs) approx.
