Bộ lặp tín hiệu HDMI PT-101Hxl
Mô tả ngắn
Kramer PT-101Hxl HDMI Repeater
-
Max. Data Rate — 6.75Gbps (2.25Gbps per graphic channel)
-
Size — Pico TOOLS™ — Mount 4 units side–by–side in a 1U rack space with the optional RK–4PT rack adapter.
-
Audio — E
Hotline: 0918 642 886

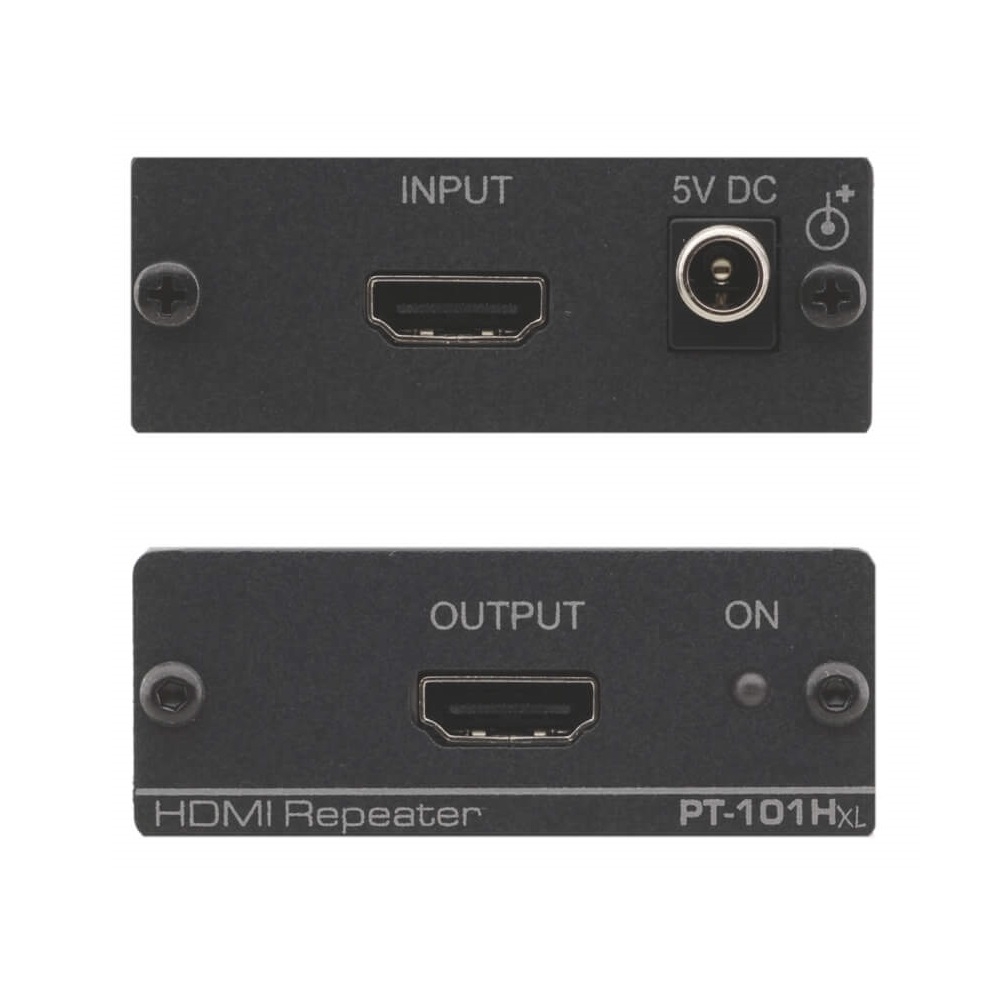

The PT−101Hxl is a line driver/repeater for HDMI video signals. The unit reclocks and equalizes the signal enabling multiple units to be cascaded.
-
HDTV Compatible.
-
HDCP Compliant.
-
Max. Data Rate — 6.75Gbps (2.25Gbps per graphic channel).
-
HDMI Support — Deep Color, x.v.Color™, Lip Sync, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS–HD, CEC.
-
3D Pass–Through.
-
EDID PassThru — Passes EDID signals between the source and display.
-
Range Extension — Extends the HDMI range (resolution dependent) to 15m (50ft) for 1080p signals.
-
Kramer Equalization & re–Klocking™ Technology — Rebuilds the digital signal to travel longer distances.
-
Power Options — AC adapter (recommended for best performance) or via HDMI signal.
-
Ultra–Compact Pico TOOLS™ — 4 units can be rack mounted side–by–side in a 1U rack space with the optional RK–4PT rack adapter.
INPUT
-
1 HDMI connector
OUTPUT
-
1 HDMI connector
MAX. DATA RATE
-
6.75Gbps (2.25Gbps per graphic channel)
COMPLIANCE WITH STANDARDS
-
HDMI, HDCP
POWER CONSUMPTION
-
5V DC, 120mA
INCLUDED ACCESSORIES
-
Power supply, mounting bracket
OPTIONS
-
RK–4PT 19" rack adapter
PRODUCT DIMENSION
-
6.22cm x 5.18cm x 2.44cm (2.45" x 2.04" x 0.96" ) W, D, H
PRODUCT WEIGHT
-
0.1kg (0.2lbs) approx
SHIPPING DIMENSION
-
17.40cm x 12.00cm x 8.60cm (6.85" x 4.72" x 3.39" ) W, D, H
SHIPPING WEIGHT
-
0.4kg (0.9lbs) approx
