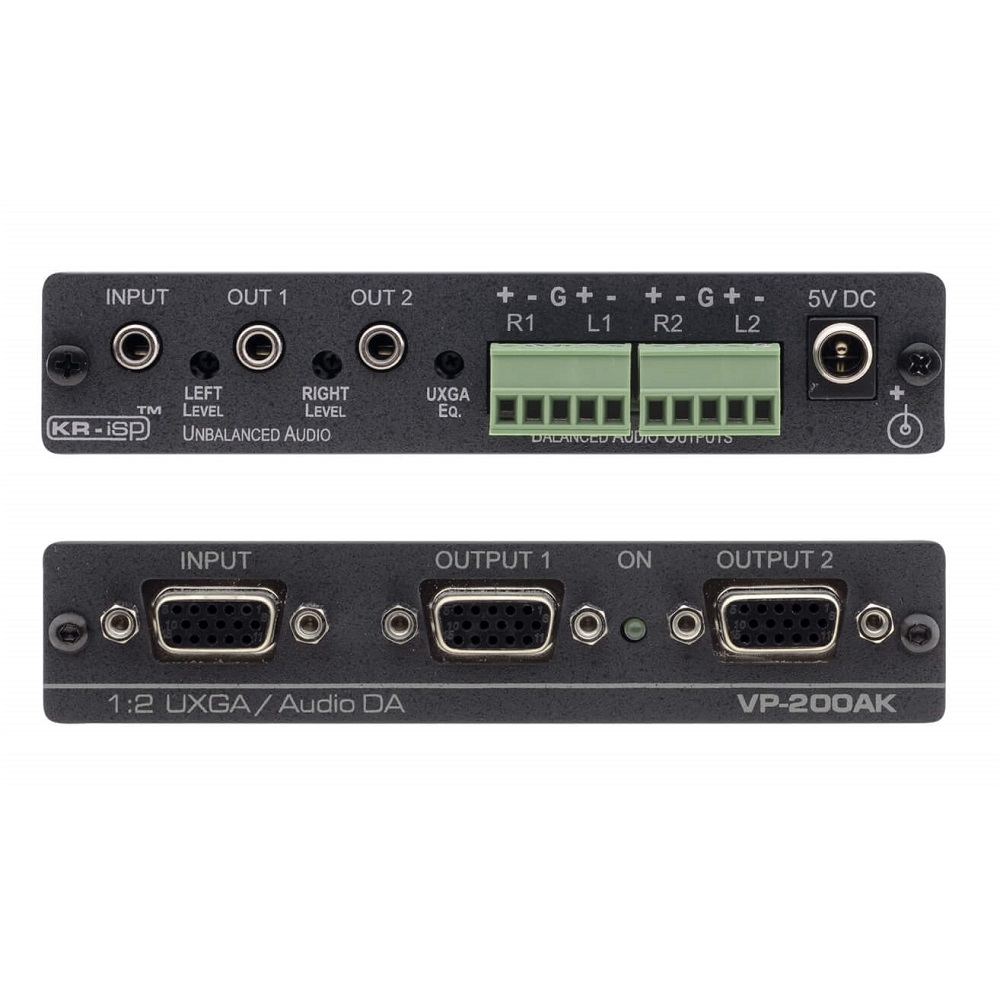

Bộ chia và khuếch đại VGA VP-200AK
Mô tả ngắn
VP-200AK 1:2 Computer Graphics Video & Stereo Audio Distribution Amplifier
Bandwidth — 510MHz
EQ Control
L&R Audio Gain
U Audio Inputs
B & U Audio Outputs
Hotline: 0918 642 886
The VP-200AK is a high-performance distribution amplifier for computer graphics video signals, with resolutions up to and exceeding UXGA, and unbalanced stereo audio. It takes a computer graphics video and stereo audio input and outputs two computer graphics video, two balanced, and two unbalanced stereo audio signals.
- High Bandwidth — 510MHz (–3dB).
- HDTV Compatible.
- Audio Outputs — Simultaneous balanced and unbalanced stereo.
- EQ (Peaking Control) Audio Level (Gain) Controls.
- Kr–isp® Advanced Sync Processing — Ensures compatibility with a wide range of computers (even if the sync level is too low) by restoring the sync signal waveform. Kr–isp® advanced sync processing can be enabled or disabled via internal switches.
- ID Bit Control.
INPUTS
-
1 UXGA on a 15–pin HD (F) connector, 1 unbalanced stereo audio on a 3.5mm mini jack
OUTPUTS
-
2 UXGA on 15–pin HD (F) connectors, 2 unbalanced stereo audio on 3.5mm mini jacks, 2 balanced stereo audio on detachable 5–pin terminal blocks
MAX. OUTPUT LEVEL
-
Video: 2.0Vpp
-
Audio: 7.2Vpp
BANDWIDTH (-3DB)
-
Video: 510MHz
-
Audio: >100kHz
DIFF. GAIN
-
0.55%
DIFF. PHASE
-
0.10Deg
K-FACTOR
-
<0.05%
S/N RATIO
-
Video: 72.5dB @5MHz
-
Audio: 82dB (balanced)
-
88dB (unbalanced)
CONTROLS
-
EQ: 0dB to 4.7dB @50MHz
COUPLING
-
Video: DC
-
Audio: AC at the output
-
DC at the input
AUDIO THD + NOISE
-
0.005% @1kHz (unbalanced and balanced)
AUDIO 2ND HARMONIC
-
0.003% (unbalanced)
-
0.001% (balanced)
POWER CONSUMPTION
-
5V DC, 120mA
INCLUDED ACCESSORIES
-
Power supply, 3ft 15–pin HD cable, mounting bracket
PRODUCT DIMENSIONS
-
12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H
PRODUCT WEIGHT
-
0.2kg (0.4lbs) approx.
