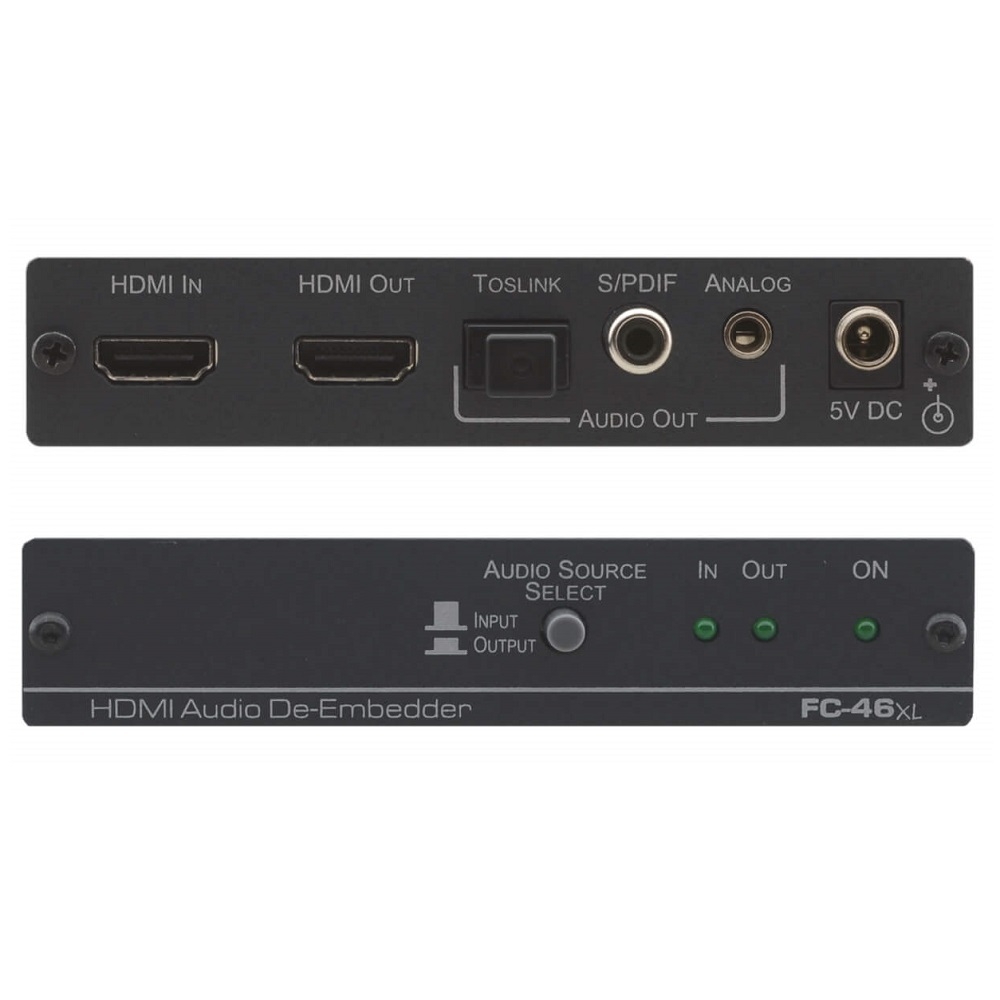

Bộ chuyển đổi HDMI FC-46xl
Mô tả ngắn
Max. Data Rate — 6.75Gbps (2.25Gbps per graphic channel)
HDCP Compliant.
Format Detection — Digital RGB or YPbPr.
Hotline: 0918 642 886
The FC−46xl is a high−performance HDMI audio de−embedder. The unit can de−embed audio from the HDMI input or from the HDMI output Audio Return channel to S/PDIF, TOSLINK® and analog audio outputs simultaneously.
- - Max. Data Rate — 6.75Gbps (2.25Gbps per graphic channel).
- - HDCP Compliant.
- - HDTV Compatible.
- - EDID Pass–through — Pass–through algorithm ensures Plug and Play operation for HDMI source and display systems.
- - Kramer re–Klocking™ and Equalization Technology — Rebuilds the digital signal to travel longer distances.
- - HDMI Support — ARC and HDMI Uncompressed Audio Channels.
- - Auto Format Detection — Digital RGB or YPbPr.
INPUT
-
1 HDMI connector
OUTPUTS
-
1 HDMI connector, 1 TOSLINK® optical digital audio connector, 1 S/PDIF digital audio on an RCA connector, 1 unbalanced stereo audio on a 3.5mm mini connector
MAX. DATA RATE
-
Supports up to 6.75 Gbps (2.25Gbps per graphic channel), 1080p @60Hz, 36–bit Deep Color
COMPLIANCE WITH STANDARDS
-
Supports HDMI, HDCP
CONTROLS
-
Audio source select button
INDICATOR LEDS
-
ON, IN, OUT
POWER CONSUMPTION
-
5V DC, 730mA
OPERATING TEMPERATURE
-
0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE
-
–40° to +70°C (–40° to 158°F)
HUMIDITY
-
10% to 90%, RHL non–condensing
INCLUDED ACCESSORIES
-
Power supply
