Bộ chuyển đổi VGA-DVI FC-31xl
Bộ chuyển đổi VGA-DVI FC-31xl

Bộ chuyển đổi VGA-DVI FC-31xl

Mô tả ngắn

Kramer FC-31xl Computer Graphics Video to DVI Format Converter

  • Max. Data Rate (DVI) — 4.95Gbps (1.65Gbps per graphic channel)

  • Controls — H & V Position and Sharpness

  • Rack Adapter — RK–1.

  • Size — MultiTOOLS® — Mount 4 units side–by–side in a 1U rack space with the optional RK–1 rack adapter.

liên hệ mua hàng
Hotline: 0918 642 886

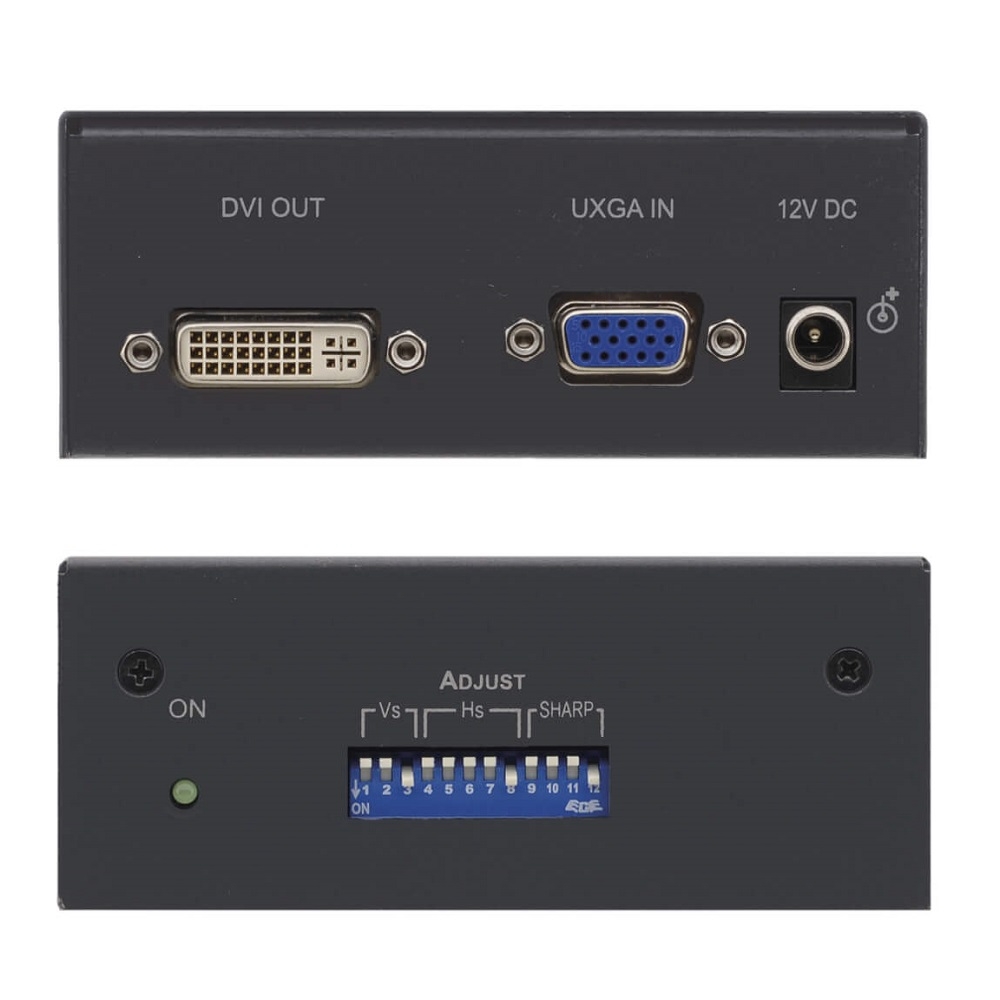

The FC-31xl is a high-performance format converter for computer graphics signals with resolutions up to and including WUXGA. The unit converts a computer graphics input to a DVI-D output.

  •  Max. Data Rate (DVI) — 4.95Gbps (1.65Gbps per graphic channel).
  •  Controls — H & V position and sharpness via DIP–switches.
  •  Compact MultiTOOLS® — 4 units can be rack mounted side–by–side in a 1U rack space with the optional RK–1 universal rack adapter.

INPUT

  • 1 UXGA on a 15–pin HD connector

OUTPUT

  • 1 DVI , 1.2Vpp on a DVI Molex 24–pin female connector

  • DDC signal 5Vpp (TTL)

SUPPORTED RESOLUTIONS

  • 640x480 @60Hz/72Hz/75Hz/85Hz

  • 720x400 @70Hz/85Hz

  • 800x600 @56Hz/60Hz/72Hz/75Hz/85Hz

  • 848x480 @60Hz

  • 1024x768 @60Hz/72Hz/75Hz/85Hz

  • 1152x864 @75Hz

  • 1280x768 @60Hz (RB)/75Hz/85Hz

  • 1280x800 @60Hz

  • 1280x960 @60Hz/85Hz

  • 1280x1024 @60Hz/75Hz/85Hz

  • 1360x768 @60Hz

  • 1400x1050 @60Hz(RB)/75Hz

  • 1440x900 @60Hz

  • 1440x1050 @60Hz

  • 1600x1200 @60Hz

  • 1680x1050 @60Hz

  • 1920x1080 @60Hz

  • 1920x1200 @60Hz(RB)

MAX. DATA RATE

  • 4.95Gbps (1.65Gbps per graphic channel)

CONTROLS

  • DIP–switches

COUPLING

  • DC

POWER CONSUMPTION

  • 12V, 180mA

OPERATING TEMPERATURE

  • 0° to +40°C (32° to 104°F)

STORAGE TEMPERATURE

  • –40° to +70°C (–40° to 158°F)

HUMIDITY

  • 10% to 90%, RHL non–condensing

INCLUDED ACCESSORIES

  • Power supply

OPTIONS

  • RK–1 19" rack adapter

PRODUCT DIMENSION

  • 10.68cm x 10.35cm x 4.36cm (4.20" x 4.07" x 1.72" ) W, D, H

PRODUCT WEIGHT

  • 0.4kg (0.9lbs) approx

SHIPPING DIMENSION

  • 35.10cm x 21.20cm x 7.20cm (13.82" x 8.35" x 2.83" ) W, D, H

SHIPPING WEIGHT

  • 0.8kg (1.9lbs) approx

Download
