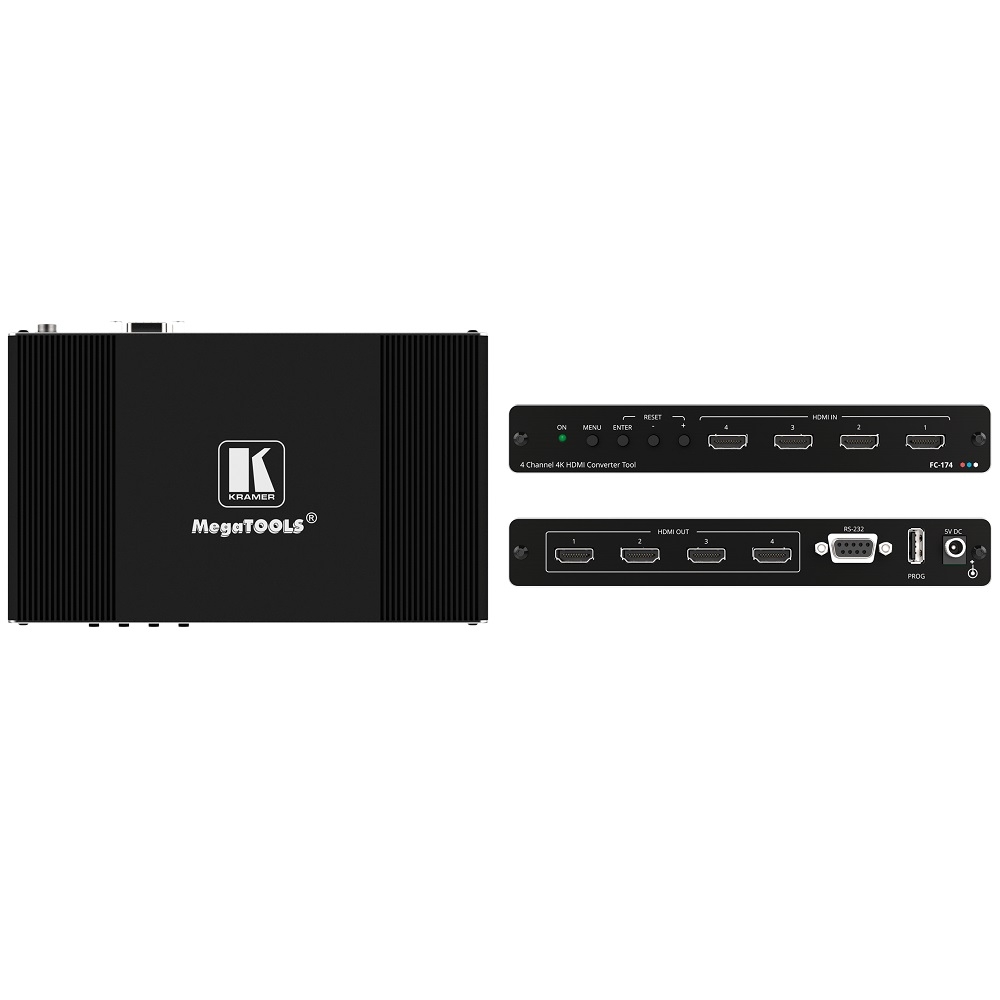

Bộ chuyển đổi HDMI FC-174

Bộ chuyển đổi HDMI FC-174

Mô tả ngắn

Compatibility between HDCP 1.4 and HDCP 2.2
Enables 4K60 4:4:4 to 4K60 4:2:0 Chroma Sampling Reduction
EDID Management
HDMI Extender
Pattern Generator

liên hệ mua hàng
Hotline: 0918 642 886

FC−174 is a versatile HDMI 4K@60Hz (4:4:4/4:2:0) multi−channel converter tool. FC−174 can convert up to four inputs/outputs from 4:4:4 to 4:2:0 color sampling and offers EDID management via a user−friendly software application. It also enables interoperability between HDCP 2.2 and HDCP 1.4 systems for up to 4 HDMI sources simultaneously. FC−174 acts as an HDMI extender that equalizes and reclocks TMDS data before re−transmitting, thus increasing the HDMI cable range from each of the 4 outputs.

- Max. Resolution — 4K@60Hz (4:4:4).

- HDMI Compliance — HDMI 1.4 and 2.0.

- HDCP Compliance — HDCP 1.4 and 2.2

- Kramer Equalization & re–Klocking™ Technology — Rebuilds the digital signal integrity to travel longer distances.

- Selectable EDID Options — Default (internal), external (sink) or user–defined.

- Independent Pattern Generators on Each Output — Displays a variety of patterns and resolutions.

- User Friendly Control — OSD menu via front–panel buttons.

- Convenient USB Port — For application control and upgrading firmware.

INPUTS

4 HDMI: On female HDMI connectors



OUTPUTS

4 HDMI: On female HDMI connectors



PORTS

1 USB: On a female USB type–A connector for firmware upgrade

1 RS-232: On a 9–pin D–sub connector for EDID management via a software application



VIDEO

HDMI Standards Compliance: 1.4 & 2.0

HDCP Standards Compliance: 1.4 & 2.2

Max. Resolution: 4K@60Hz (4:4:4)



USER INTERFACE

Control: OSD menu via front panel buttons

Indicators: ON LED



POWER

Source: 5V DC

Consumption: 1.8A



ENVIRONMENTAL CONDITIONS

Operating Temperature: 0° to +40°C (32° to 104°F)

Storage Temperature: –40° to +70°C (–40° to 158°F)

Humidity: 10% to 90%, RHL non–condensing



ACCESSORIES

Included: Power adapter, bracket set



PRODUCT DIMENSION

18.75cm x 11.50cm x 2.54cm (7.38" x 4.53" x 1.00" ) W, D, H



PRODUCT WEIGHT

0.5kg (1.0lbs) approx.
