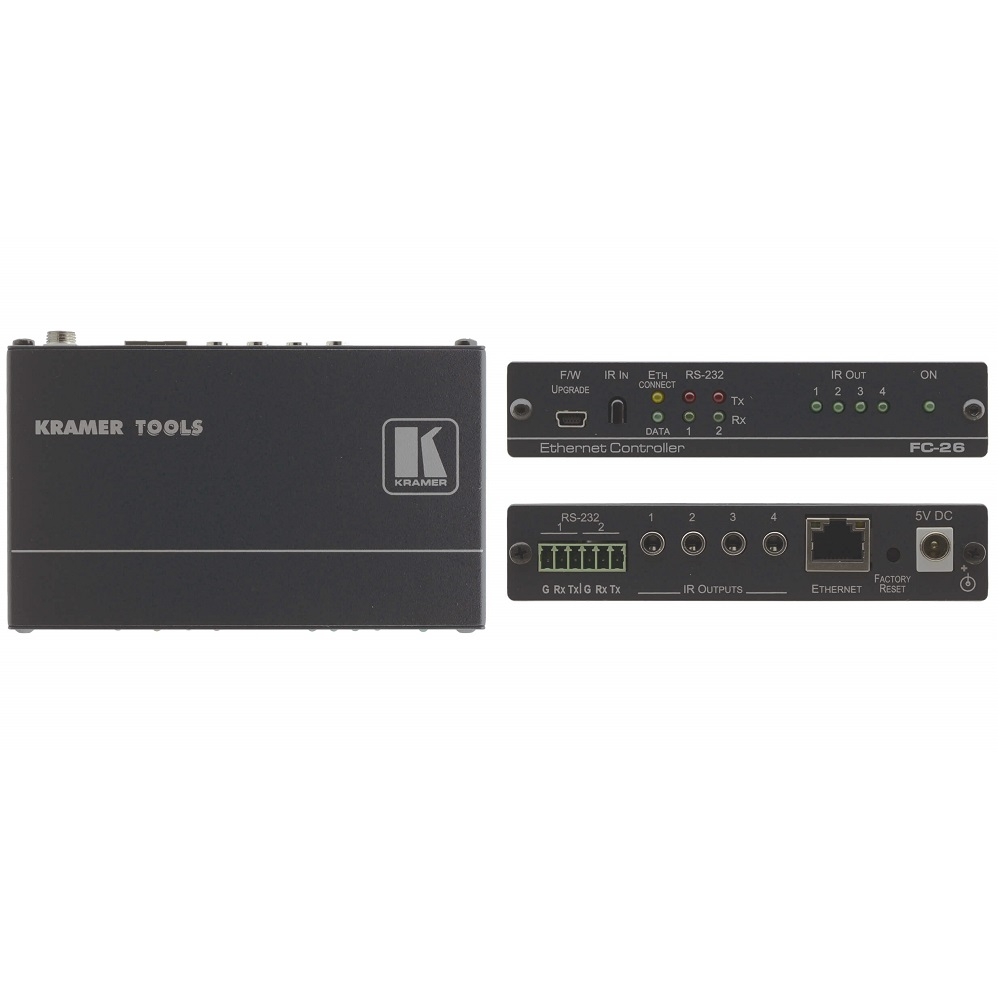

Bộ điều khiển FC-26
Mô tả ngắn
2 Bidirectional RS–232 ports
4 IR emitter ports
1 IR sensor for learning
1 Ethernet port
PoE powering
Hotline: 0918 642 886
The FC−26 is a PoE−powered control gateway, capable of plug and play deployment over a customer Ethernet LAN for remote control of customer controlled devices via bidirectional RS−232 and IR control connections. Multiple control clients can be IP−connected to the FC−26 control gateway for concurrent control of two RS−232 and four IR controllable devices, such as AV scalers, video displays, audio amplifiers, and DVD players.
- 2 RS–232 Bidirectional Control Ports — Control a device via bidirectional serial control protocols.
- 4 IR Emitter Control Ports — Control a device via IR control protocols.
- 1 Ethernet Control Port — Remote protocol–based control port.
- Built–in Web Pages — Remote browser–based control and support.
- Simultaneous IP Control Communication — With up to 40 IP control clients.
- IR Sensor Port — Learns commands from IR remotes.
- Mini USB Port — For firmware upgrades and local technical services.
- PoE Support — Per IEEE 802.3af standard.
- Easy Installation — Single Ethernet cable wires for communication and PoE powering, and plug & play IP auto–setup deployment for simple and cost–reducing installation.
OUTPUTS
4 IR on 3.5mm mini jacks
PORTS
2 RS–232 serial on 3–pin terminal blocks, 1 Ethernet on an RJ–45 connector, 1 mini USB connector for local services, 1 built–in IR sensor (for learning)
SUPPORTED SERIAL PORT BAUD RATES
1200, 2400, 4800, 9600, 19200, 38400, 57600, 15200bps
RS-232 COMMUNICATION
Transparent up to 115200bps
IR EMITTER CABLE RANGE
80m (260ft)
SUPPORTED IR INPUT FREQUENCIES
20kHz to 60kHz
SUPPORTED IR OUTPUT FREQUENCIES
20kHz to 1.2MHz
MAXIMUM DATA HANDLING OF DEVICE
Up to 150kbps summed on all ports
POWER CONSUMPTION
5V DC, 230mA
OPERATING TEMPERATURE
0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE
–40° to +70°C (–40° to 158°F)
HUMIDITY
10% to 90%, RHL non–condensing
COOLING
Convection
ENCLOSURE TYPE
Aluminum
RACK MOUNT
With optional rack adapter
VIBRATION
ISTA 1A in carton (International Safe Transit Association)
SAFETY REGULATORY COMPLIANCE
CE
ENVIRONMENTAL REGULATORY COMPLIANCE
Complies with appropriate requirements of RoHs and WEEE
INCLUDED ACCESSORIES
Power adapter, IR Cable C–A35M/IRE–10
PRODUCT DIMENSION
12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H
PRODUCT WEIGHT
0.2kg (0.4lbs) approx.
