Bàn phím điều khiển RC-43SL

Bàn phím điều khiển RC-43SL

Mô tả ngắn

6 white–color, touch–sensitive buttons

Custom labeled, removable button caps

1 Ethernet port, 1 KNET™ port, 2 Bidirectional RS–232 ports, 2 IR emitter ports, 3 Relay ports, 1 IR sensor for learning

Site–CTRL software compatible

Supported by all Kramer control platforms

liên hệ mua hàng
Hotline: 0918 642 886

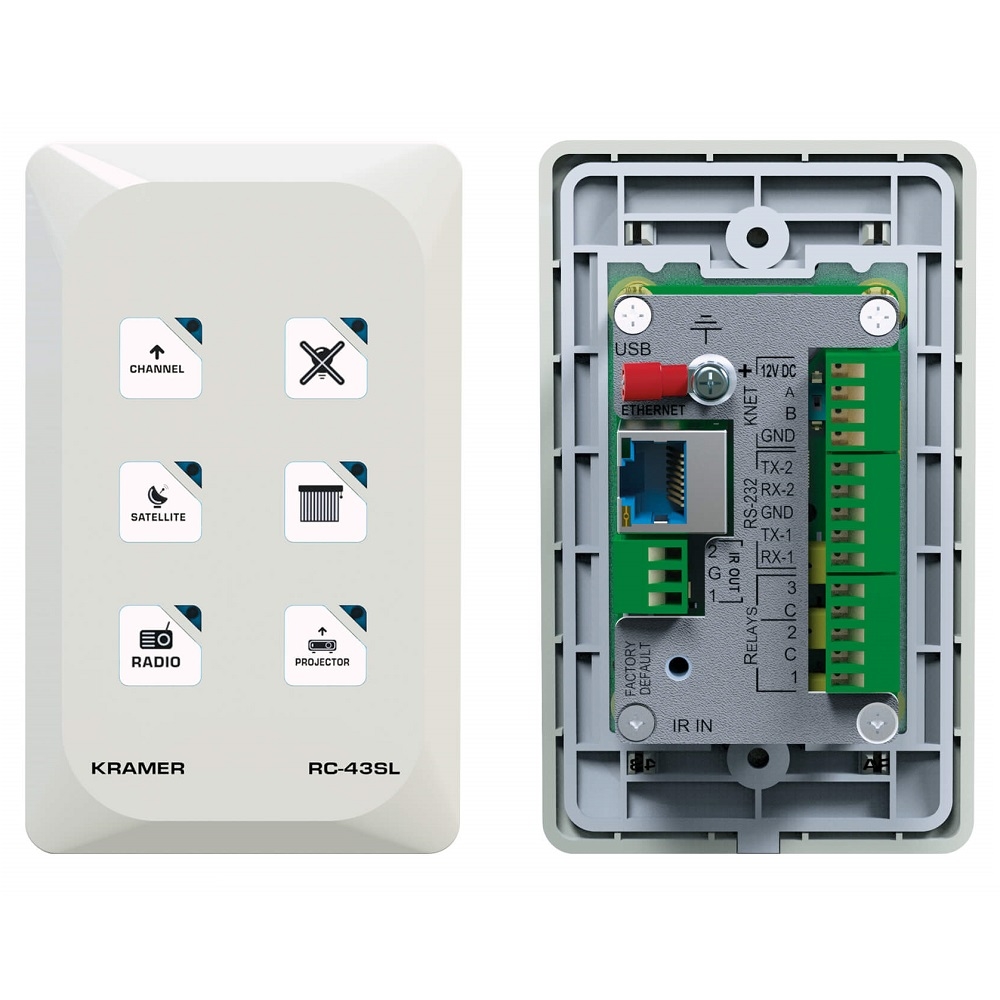

The RC−43SL is a touch−sensitive 6−button control keypad. Connected over Ethernet to Site−CTRL™ remote AV control, site management & monitoring system, as well as LAN−connected control gateways for extended controlled devices capacity. It also connects over KNET™ to master room controller and auxiliary keypads for remote keypad control. It can flexibly serve either as a standalone room controller, part of multi−units KNET™ system, or part of multi−unit Ethernet system managed by Kramer Site−CTRL™ site management platform. The RC−43SL is ideal for auditoriums and meeting rooms, for convenient control of their complex multimedia systems and other room facilities such as screens, lighting and shades.



  •  - Touch–Sensitive & Label Capable Buttons — 6 white–color LED–feedback buttons.
  •  - Custom Labeled, Removable Button Caps.
  •  - 1 K–NET™ Connector — Connect to master room controller, and auxiliary keypads for remote keypad control.
  •  - K–NET™ Single Link Connection — Provides a single keypad link cable–connectivity, carrying both power and keypad control.
  •  - 2 RS–232 Bi–directional Control Ports — Control a device via bi–directional serial control protocols.
  •  - 2 IR Emitter Control Ports — Control a device via IR control protocols.
  •  - 3 Relay Control Ports — Control a device via Relay Contact Closure, such as scrolling up and down screens, drapes, shades, and blinds.
  •  - IR Sensor Port — Learns commands from IR remotes.
  •  - Program Control — Program configuration with Kramer K–Config software.
  •  - Kramer Site–CTRL™ Compatibility — For network management and remote control over the Ethernet port.
  •  - Mini USB Port — To upload configuration files, set the K–NET™ ID number, and power the device during configuration.
  •  - Mounting — In–wall, in standard 1 gang US wall junction boxes.
  •  - Easy Installation — Fits to standard in–wall boxes for simple and cost–reducing installation.

PORTS

  • 2 RS–232 and 1 K–NET on terminal block connectors, 1 Ethernet on an RJ–45 connector, 1 infrared sensor, 1 Mini USB for programming



OUTPUTS

  • 2 IR–out and 3 relays (36V AC or DC, 2A, 60V AC maximum on non–inductive load) on terminal block connectors



POWER CONSUMPTION

  • 12V DC, 100ma



OPERATING TEMPERATURE

  • 0° to +40°C (32° to 104°F)



STORAGE TEMPERATURE

  • –40° to +70°C (–40° to 158°F)



HUMIDITY

  • 10% to 90%, RHL non–condensing
