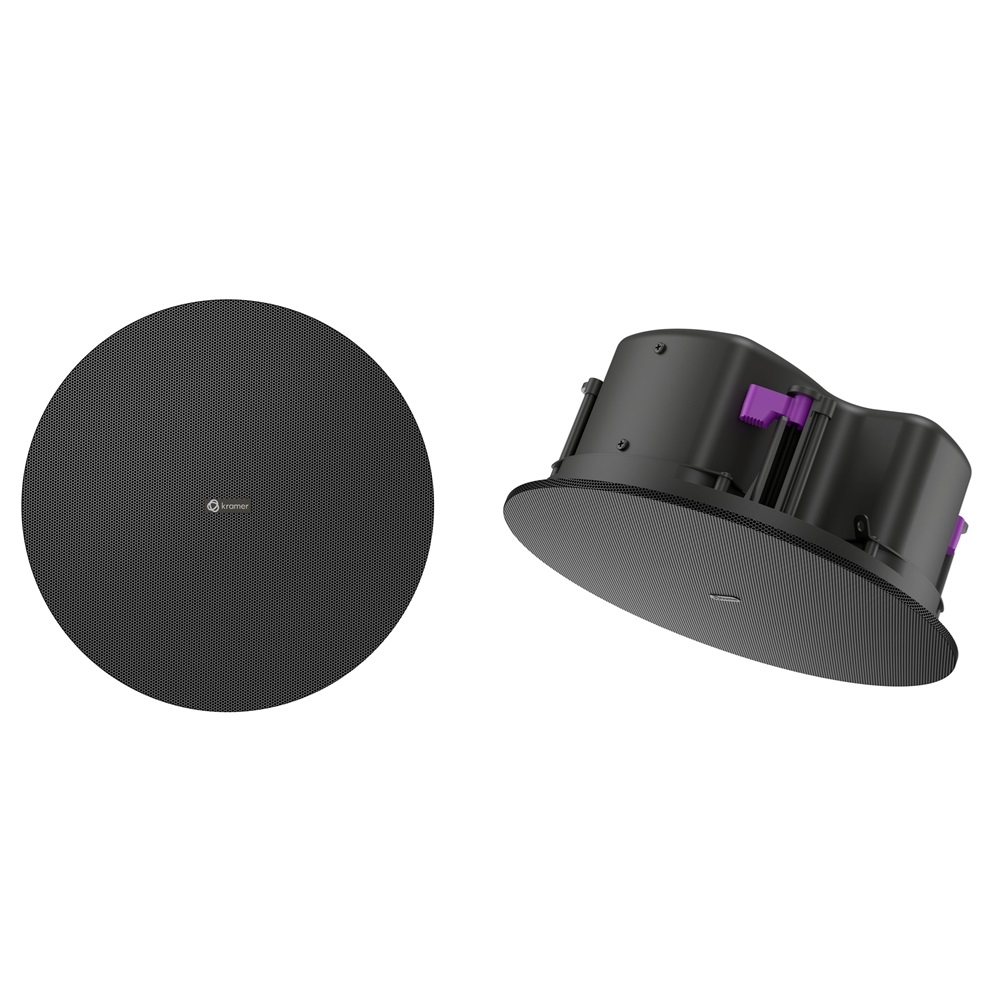

Bộ loa âm trần Passive Low Profile CL-6P-LP

DESCRIPTION

• Low profile 6.5”, 2–way coaxial passive speaker with Transformer tap for both low–impedance (8Ω) and high–impedance (70V/100V) modes. White & Black magnetic grills included in the box

Audio

• Driver:
  LF Driver: 165 mm (6.5 in) high output driver with polypropylene cone and rubber surround

• HF Driver: 19 mm (0.75 in) liquid cooled soft–dome tweeter

• Frequency characteristics
  Frequency Range (-10dB): 80Hz–20kHz

• Frequency Response (±3dB): 90Hz–18kHz

• Dispersion angle: 106 deg. conical dispersion (1 kHz to 4 kHz)

• Power ratings
  @ 8Ω Low impedance: 30W continuous / 45W peak

• @ 100 V High impedance: 30W/15W/7.5W

• @100 V High impedance: 30W/15W/7.5W/3.8W

• Sound Pressure Level (SPL)
  Sensitivity (1W@1m, free field): 90dB SPL

• Maximum SPL: Continuous: 105dB SPL / Peak: 107dB SPL

MECHANICAL

• Installation
  Type: In–ceiling speaker installation with brackets and C–ring

• Mounting: 4–point screw down Dog–Ear clamp, up to 60mm / 2.36” ceiling thickness

• Connectors: 4–pin pluggable Euroblock connector, 28–12AWG

• Cutout: Cutout template included in the box

• Weight per single speaker: 3kg (6.6lbs)

• Dimensions
  Depth (ceiling clearance): 115mm / 4.53”

• Back enclosure outer diameter: 250mm / 9.84”

• Cutout diameter: 252mm / 9.92”

• Grill diameter: 282mm / 11.1”

• Shipping dimensions (Single unit): 366mm x 366mm x 165mm/ 14.4" x 14.4" x 6.5"

• Shipping dimensions (2 units in master box): 385mm x 385mm x 380mm/ 15.2" x 15.2" x 15"

• Shipping weight (single units): 4.6kg (10.2lbs)

• Shipping weight (Master Box with 2 single units): 9.8kg (21.6lbs)

• Packaging: Eco–friendly mono–material packaging made entirely from recyclable carton, designed for durability and ease of recycling

• Material
  Grill: Black/White Powder Coated Steel, Magnetic, with cloth, paintable

• Baffle: V–0 Flame Retardant

• Back enclosure: Powder–coated steel

• Environmental
  Operating Temperature: –5° to +50°C (23° to 122°F)

• Storage Temperature: –10° to +55°C (14° to 131°F)

• Humidity: 30% to 85%, RHL non–condensing

REGULATORY

• Safety
  UL 2043 Certified: Plenum rated for safe use in air–handling spaces, meeting fire and smoke standards

• UL1480A Certified: Meets safety standards for fire–protective signaling in commercial spaces

• Environmental
  : RoHS, REACH, WEEE

In the Box

• 1 speaker (single unit), 2 speakers are packed in a single master box

• Installation kit including C–ring and bolts (mounting rails are not included and should be purchased separately)

• 2 magnetic grills (1 white and 1 black per speaker)

• 4–pin pluggable Euroblock connector, 28–12AWG

• Cutout template

• Accessories (bracket bolts, UL cable passthrough, Silicon cable passthrough, zip tie for securing the speaker cable)

• Quick Start Guide
