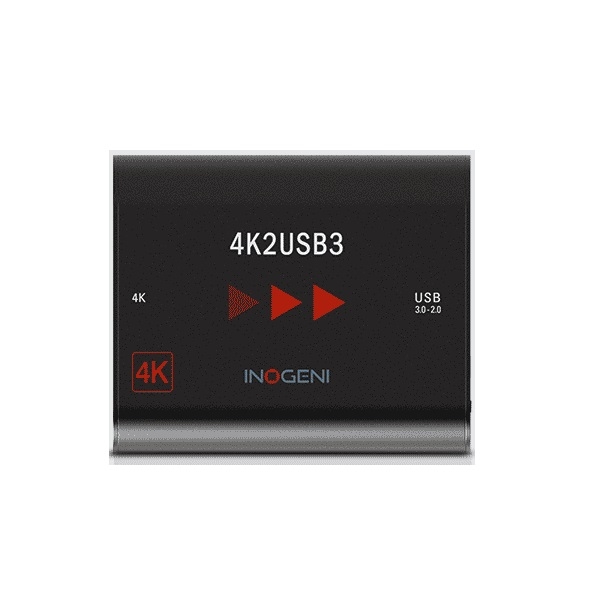

Inogeni 4K2USB3 HDMI 4K to USB 3.0 capture card
HDMI capture to USB 3.0
Supports Ultra HD 4K, 1440p, 1080p, 1080i, 720p, 480p, and 576p video formats
HDMI audio support
Digital Fluid technology: Internal frame buffers maximize frame rate with any PC
INOGENI’s 4K2USB3 HDMI 4K to USB 3.0 capture card (camera converter) is compact and powered directly from a USB 3.0 port, making it a practical and easy-to-use USB 3.0 capture solution.
- Highly stable signal
- Advanced video processing for: USB 3.0 up to 4K, USB 2.0 1080p MJPEG
- HDMI audio support
- Cost-effective professional camera converter solution that is reliable and simple to install and connect (no driver required)
- Compact and robust design with its aluminium enclosure
- Designed and manufactured in Canada
- TAA-compliant
Main feature
Description
Converts 4K Ultra HD HDMI (video and audio) to USB 3.0 without compression.
Video input
Connector & video resolutions
1x HDMI 1.4a
4K UHD (3840/4096×2160), 1440p, 1080p, 720p, 1080i, 480p, 576p, 1280×1024, 1280×960, 1280×800, 1024×768, 800×600, 640×480
Frame rates
60, 59.94, 50, 30, 29.97, 25, 24, 23.98 Hz for all resolutions, except 4K = 30Hz max.
Color space
RGB, YCbCr, 4:4:4, and 4:2:2 (4K=RGB)
Sampling rate
297 MHz
Embedded audio
Ch 1&2 48kHz LPCM
Video output
Color space
RGB, YCbCr, 4:4:4, and 4:2:2 (4K=RGB)
USB - Connector & video resolutions
1x USB 3.0 Type-B
USB - CODECs
YUY2 4:2:2 and NV12/I420/YV12 4:2:0 for USB 3.0
MJPEG for USB 2.0*
Notes for MJPEG for USB 2.0
* Devices having serial numbers >= 4K2037XXX will support MJPEG over USB 2.0. Otherwise, it will be uncompressed video.
USB - Video scaler
Automatic hardware based
USB - Color space conversion
Automatic hardware based
USB - Sampling conversion
Automatic hardware based
USB - Frame rate conversion
Automatic hardware based
Audio
Analog audio I/O
2-channel LPCM audio from HDMI
Audio input connector
CH1&2 48kHz LPCM feed from HDMI
Compatibility
Cisco Webex Compatible
Easily programed macros in your Webex room device.
Native Webex implementation available in Q2 CY2022.
Intuitive interface on Webex Touch 10 or Webex Navigator.
The 4KX-PLUS is compatible with Webex Devices for multiple displays.
The 4K2USB3 is compatible with Webex Devices for one display.
Macro and native
Webex Room Kit
Webex Room Kit Plus
Webex Room Kit Pro
Webex Room 55
Webex Room 70
Webex Room Panorama
Macro only
Cisco MX700
Cisco MX800
Cisco SX80
Operating system
NO driver installation necessary!
Windows 7 and above (32/64-bit)
macOS 10.10 and above
Linux (kernel v2638)
Minimum host requirements
USB 2.0 port – We recommend USB3.0 for uncompressed video
4GB RAM
Intel Core i5 or equivalent
Graphic card with dedicated memory
Motherboard
Compatible with all motherboards. Intel, Renesas, ASMedia, and Fresco Logic
Supported cameras
Cameras and camcorders with an HDMI output
Software compatibility
UVC-compliant Runs with all software compatible to DirectShow, AVFoundation and V4L2 Compatible to: Teams, Zoom, Webex, Google Meet, etc.
Physical details
Dimensions (W x L x H)
8.1 cm x 7.4 cm x 1.9 cm
3.2” x 2.9” x 0.75”
Power supply
Powered by USB (5V / 716mA)
Weight
120 g (0,26 lb)
Package content
1x 3ft USB 3.0 cable (Type-A to Type-B)
Operating temperature
0° to 45° C
32° to 113° F
Storage temperature
-40° to 105° C
-40° to 221° F
Relative humidity
0% to 90% non-condensing
