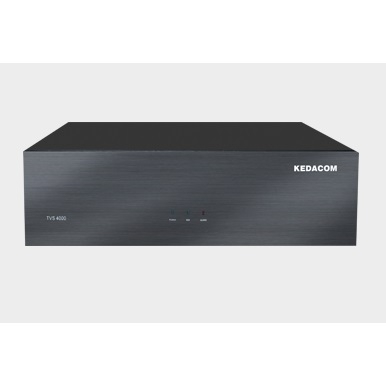

KEDACOM TVS4000 TV Wall Server

TVS4000 TV Wall Server Chassis

Slots

7

Interfaces

2 x Gigabit network port, RJ45 interface, backup

Environmental

Ground resistance: ≤5Ω
Operating temperature: 0°C ~ 45°C / 32℉ ~ 113℉
Operating humidity: 10% ~ 85%
Atmospheric pressure: 86 ~ 106 kPa

Electrical

Power: Dual redundant power supply, 100 ~ 240V AC, 50 ~ 60Hz
Power consumption: Max. 250W

Mechanical

Weight: < 9.5kg / 20.94lb
Dimensions: 130 x 443 x 339mm / 5.12" x 17.44" x 13.35"

TVS-HDU2 Decoding Module

System Standards

H.323, SIP

Video Standards

H.261, H.263, H.263+, H.264, H.264 High-Profile

Video Resolution

Video:
1080i/p (1920 x 1080), 720p (1280 x 720), 4CIF (704 x 576), CIF (352 x 288)
Content:
WSXGA+ (1680 x 1050), UXGA (1600 x 1200), WSXGA (1440×900), SXGA (1280 x 1024), WXGA (1280 x 800), XGA (1024 x 768), SVGA (800 x 600), VGA (640 x 480)

Audio Standards

G.711, G.719, G.722, G.722.1 Annex C / Polycom Siren14^TM, G.728, G.729, MP3, MPEG4-AAC (LC / LD), Opus

Network Protocols

TCP / IP, Telnet, HTTP / HTTPS, FTP / FTPS, SNMP, RTP / RTCP, SSH

Conference Bitrate

64 Kbps to 8 Mbps

Output Capability

2 x 1080p60 output

Layout

1, 4 (Only one channel can support 4 x 720p30)

Interfaces

2 x DVI-I video out,
2 x TRS (3.5mm) audio out
1 x RS232
