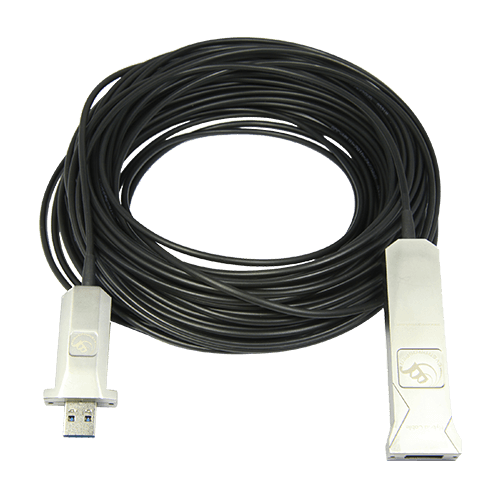

USB3.0 Hybrid Cable 10m TLC-41

USB3.0 Hybrid Cable 10m TLC-41

Mô tả ngắn

USB3.0 Hybrid Cable 10m TLC-41

liên hệ mua hàng
Hotline: 0918 642 886

This cable is new generation of USB3.0 hybrid cable. Its build-in unique SuperTT technology is capable of realizing mutual conversion between USB3.0 and USB2.0 protocols, so as to enable USB2.0 equipment to share the super speed bandwidth(5Gbps) of USB3.0. It is highly recommended to use with all series Telycam USB3.0 HD PTZ camera for long distance application.

  • ·Support USB3.0/USB2.0/1.1 devices

  • ·The maximum cable length can be up to 50m

  • ·The maximum transition speed can be up to 5Gbps

  • ·A substantial increase in USB2.0 device bandwidth with Build-in SuperTT technology

  • ·Without additional power supply

  • ·With locking screw holes

  • ·Hot-plugging

  • ·No driver& Anti-jamming



Interface:

  1. Cable Length: 10m
  2. USB3.0 Standard-A Plug(with locking screws), USB2.0 Micro-B Receptacle, Auxiiary powerSupply for device >2W power dissipation
  3. Device Side: USB3.0 Standard-A Receptacle(with lockingthreads)
  4. Data Rate: USB3.0 Super Speed, Up to 5Gbps, backward compatible with USB2.0/1.1
  5. Power Dissipation:0.94W
  6. Physical/Environmental
  7. Dimension of The End:
  8. Host side:44mm/27mm/13mm, Device side: 82mm/26mm/14.5mm
  9. Weight of The End: TBD
  10. Cable Diameter: 3mm
  11. Bend Radius:20mm
  12. Operating Temperature:0-55°C
  13. Storage Temperature:-20~80°C
