1080p60 FHD resolution
30x optical zoom
Built-in auto tracking function
NDI ®|HX3 /3G-SDI/HDMI/USB-C Available
Audio output via HDMI, NDI®|HX3 and 3G-SDI
SRT supported
Power over Ethernet

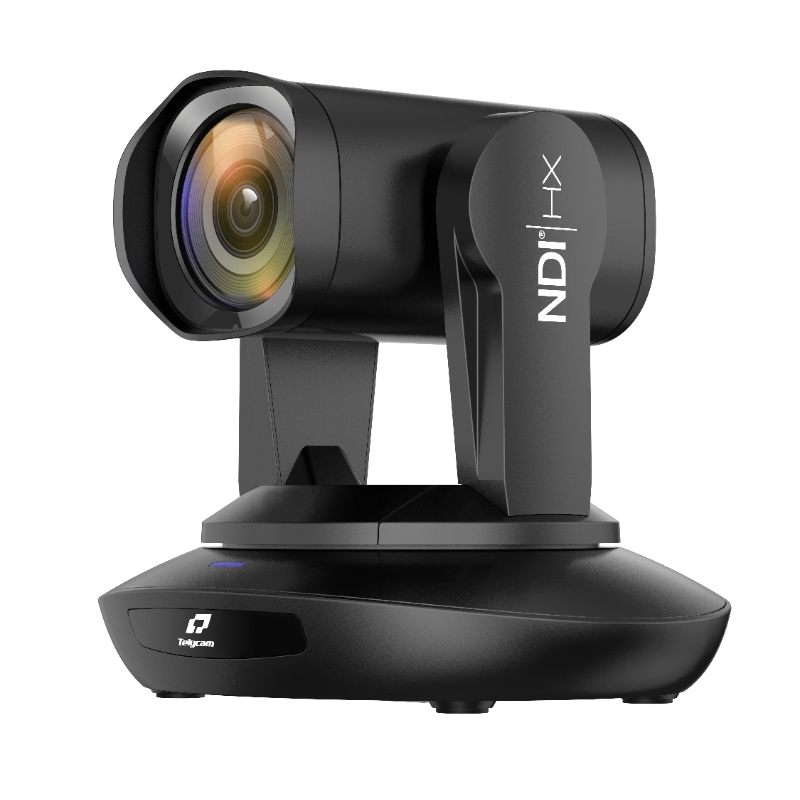

Vision+ N3 30X NDI ®|HX3 Auto Tracking Live Streaming PTZ Camera
Features:
1080p60 resolution
Equipped with premium image processing solution and Sony sensor, to deliver high definition and crystal-clear image.
30x optical zoom
It shoots with a 30x optical zoom lens with a 60 degree FOV, and a proprietary focusing algorithm enable fast and precise focus performance when zooming or moving, to capture every detail of the scene.
3G-SDI/HDMI/USB2.0 Available
In addition to NDI®|HX3, 3G-SDI, HDMI, and USB2.0 output images simultaneously as well.
3G-SDI and HDMI are for conventional video production workflow, and USB output can be used as a high-end webcam.
Built-in auto tracking function
With built-in auto-tracking function, you don’t need any third-party software or device, just turn on with one click on the WebUI, matching remote control or Telycam’s control keyboard, and you can track the target accurately and smoothly without any outside interference. You can also switch the target talent, or set the target area, or change the target size.
Support NDI®|HX3
Comply with NDI® |HX3 certification, provide extremely low latency and visually lossless compressed image. Flexible support to both H.264 and H.265 compression.
Camera |
Vision+ N3 20x |
Vision+ N3 30x |
|
|
Part Number |
TLC-300-IP-20(NDI)-AB |
TLC-700-IP-30(NDI)-AB |
|
|
Sensor |
1/2.8 inch, 2.4MP UHD CMOS Sensor |
1/1.8-inch, 12MP UHD CMOS sensor |
|
|
Zoom |
20x optical zoom |
30x optical zoom |
|
|
Lens |
f = 4.9 ~ 98mm, F1.5 ~ F3 |
f = 6.91 ~ 214.64mm, F1.35 ~ F4.6 |
|
|
Horizontal View Angle |
60°(Wide) ~ 3.2°(Tele) |
60° (Wide) ~ 2° (Tele) |
|
|
Vertical viewing angle |
32.2° ~ 1.8° |
34.14° ~ 1.12° |
|
|
Diagonal viewing angle |
61° ~ 3.64° |
67.08° ~ 2.27° |
|
|
Minimum Working Distance |
1.0m |
1.5m |
|
|
S/N Ratio |
≥50dB |
|
||
Video Format |
HDMI: 1920*1080P60/50/30/25/59.94/29.97/24/23.98; 1920*1080160/50/59.94; 1280*720P60/50/30/25/59.94/29.97 |
|
||
NDI®|HX3: Main Stream: 1920*1080@15~60;1280*720@15~60;1024*576@15~60 Sub Stream: 640*360@15~30 |
|
|||
3G-SDI: 1920*1080P60/50/30/25/59.94/29.97/24/23.98; 1920*1080160/50/59.94; 1280*720P60/50/30/25/59.94/29.97 |
|
|||
USB Type-C: NV12 :1920*1080p5;1280*720pl5;1024*576P25;800*448P30; YUY2:1920*1080p5;1280*720pl0;1024*576P15;800*448P30; MJPG:1920*1080P30; 1280*720P30; 1024*576P30; 800*448P30 H.264/HEVC: 1920*1080P30; 1280*720P30; 1024*576P30; 800*448P30 |
|
|||
Image Parameters |
||||
Noise Reduction |
2D&3D |
|
||
Minimum lux |
20x: 0.7lux (50 IRE Max AGC,1/30,F1.8) |
30x: 0.5lux (50 IRE Max AGC,1/30,F1.8) |
|
|
White Balance |
Auto/Manual/Auto tracking/Push/Indoor/Outdoor/Color Temperature |
|
||
Exposure |
Auto/Manual/Shutter Priority/Iris Priority/Brightness Priority |
|
||
Anti-Flicker |
OFF,50Hz,60Hz |
|
||
Image Flip |
Support |
|
||
Mirroring |
Support |
|
||
Focus |
Auto/Manual |
|
||
Iris |
Auto/Manual |
|
||
Electronic-shutter |
Auto/Manual |
|
||
Gamma |
Support |
|
||
Backlight Compensation |
Support |
|
||
IP Streaming |
||||
Video Encoding |
H.264/H.265 |
|
||
Bitrate Control |
Variable bitrate(VBR), Constant bitrate(CBR) |
|
||
Bitrate Range |
1024Kbps~61440Kbps |
|
||
Network Port Speed |
1000M |
|
||
Protocol |
NDI®|HX3, SRT, HTTP, RTSP, RTMP, ONVIF, VISCA over IP, TCP, UDP, VISCA, PELCO P/D, HTML5, Webrtc, RTP Multicast |
|
||
Pan/Tilt Movement |
||||
Preset |
Remote controller: 10; Serial port: 128; Accuracy:0.1° |
|
||
Pan Rotation Angle |
-170° ~+170° |
|
||
Tilt Rotation Angle |
-30° ~+90° |
|
||
Pan Rotation Speed |
20x: 0.1°~120°/s |
30x: 0.1°~80°/s |
|
|
Tilt Rotation Speed |
20x: 0.1°~80°/s |
30x: 0.1°~60°/s |
|
|

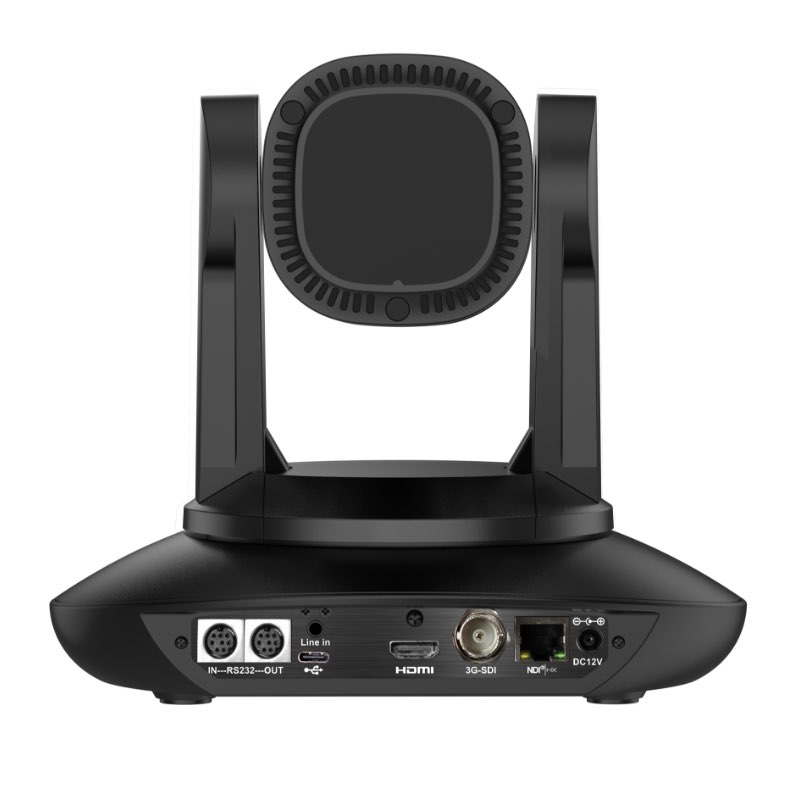

I/O Interface |
||||
Control Port |
RS232(RS485), NDI®|HX3 |
|
||
Video Port |
NDI®|HX3, HDMI, 3G-SDI, USB Type-C |
|
||
Audio Port |
Dual 3.5mm linear inputs |
|
||
Tally |
Support |
|
||
POE+ |
Support |
|
||
Daisy Chain |
Support |
|
||
General |
||||
Input Voltage |
DC12V, POE+(IEEE802.3at) |
|
||
Operating Temperature |
-10℃~ 50℃ |
|
||
Operating Humidity |
≤80% |
|
||
Color |
Black/White |
|
||
Dimension(L×W×H) |
20x: 220mm×190mm×173mm |
30x: 220mm×190mm×193.5mm |
|
|
Net Weight |
20x: 1.5kg(3.3LBS) |
30x: 1.9kg(4.2LBS) |
|
