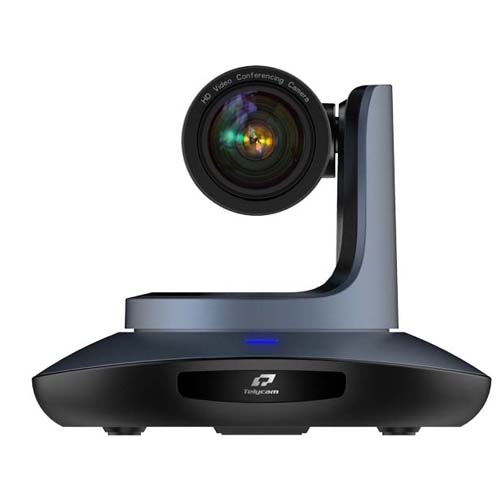

Camera Telycam TLC-300-IP-5-4K

Camera Telycam TLC-300-IP-5-4K

Mô tả ngắn

1/2.5 inch 8MP sensor and high quality 5x 4K optical lens

5x optical zoom+3x digital zoom, 85 degree field of view

View Angle: 26.5°(wide)~85°(tele)

IP, 3G-SDI, HDMI and USB3.0 video output simultaneously



liên hệ mua hàng
Hotline: 0918 642 886

TLC-300-IP-5-4K - 5X 4K UHD IP PTZ Video Camera



Telycam TLC-300-IP-5-4K is a professional grade 4k UHD video camera, video streaming from IP, HDMI,3G-SDI&USB3.0 simultaneously, very ideal for small room and middle room AV solution, video conferencing and lecture capture application.



3840X2160 UHD VIDEO RESOLUTION. Adopts most advanced ISP, 1/2.5 inch 8MP sensor and high quality 5x 4K optical lens, to provide crip video with full details. WDR (wide dynamic range), 3D noise reduction adjusted via OSD menu, and IP address set via OSD menu.



5X OPTICAL ZOOM+3X DIGITAL ZOOM, 85 DEGREE FIELD OF VIEW.



IP, 3G-SDI, HDMI AND USB3.0 VIDEO OUTPUT SIMULTANEOUSLY 4K video over IP, and support H.264, H.265 encoding.



POE SUPPORTED One single cable allows video transmission, camera control as well as power supply.



HIGH PRECISE MOTOR POSITIONING 340 degree pan rotation, 125degree tilt rotation, quiet&smooth mechanism movement, accurate&fast focus, to capture every details in whole space.



STANDARD SONY VISCA, ONVIF , PELCO-P/DCONTROL PROTOCOL. RS232/485 control and firmware upgrade. 128 preset GetIP address automatcially.



SUPPORT IMAGE FLIP FUNCION, CAMERA CAN BE INSTALLED UP OR UPSIDE DOWN.

Camera:

Sensor: 1/2.5 inch 8.5MP CMOS sensor

Lens: 5x optical zoom, 3x digital zoom

View Angle: 26.5°(wide)~85°(tele)

Video Format:

HDMI: 3840*2160p30/25, 1080p60/50/30/25, 720p60/50/30/25, 1080i60/50

IP: Main Streaming:3840*2160@30-1, 1920*1080@30-1

Sub-streaming: 1280*720@30-1, 1024*576@30-1, 640*360@30-1

3G-SDI: 1080p60/59.94/50/30/29.97/25; 720p60/59.94/50/30/29.97/25; 1080i60/59.94/50

USB3.0: 1080p60/50/30/25; 720p60/50/30/25

USB2.0: 1024*576p30, 960*540p30, 640*360p30, 352*288p30

Focal Length: f=2.8(近)~14mm(远)

S/N Rate: >50dB

Minimum Lux: 0.01 lux

Focus: Auto/Manual

Min Focus Distance: Wide:0.3m Tele:1m

Iris: Auto/Manual

Iris No.: Wide:1.84 Tele :2.81

White Balance: Auto / Manual/Auto Tracking/OnePush/Indoor/Outdoor/

Electronic Shutter: Auto/ Manual

BLC: ON/OFF

Anti Flicker: 50Hz/60Hz/OFF

Video Freeze: Optional



Mechanical

Pan Rotation Angle: -170° ~ +170°

Tilt Rotation Angle: -30° ~ +90°

Pan rotation speed: 0°~120°/s

Pan rotation speed: 0°~80°/s

Preset: 128 via RS232 control; 10 via remote controller

Image Flip: Support



Port:

Video: IP, HDMI, 3G-SDI, USB3.0

Control: RS232(Sony Visca), RJ45(Onvif)

Power: DC12V

POE: Supported



Encoding:

Video Encoding Standard: H.264/H.265

Bit Rate Control: Variable Bit Rate, Constant Bit Rate

Video Bit Rate: 1024Kbps~20480Kbps

Frame Rate: 50HZ:1fps~50fps 60HZ:1fps~60fps (3840*2160: Max30fps)

Protocol: TCP/IP, HTTP, RTSP, RTMP, ONVIF, DHCP, VISCA over IP(TCP&UDP)



OSD Menu:

Language: English/Chinese



Dimension:

Camera: 220mm×173mm×117mm

Package: 32x30x31cm



Note:

Note: When HDMI outputs 4K, IP outputs 4K, and 3G-SDI&USB3.0 have no image. If you need 3G-SDI and HDMI output image, the HDMI needs to output 1080p or lower than 1080p resolution.
