Camera Oneking USB 3.0 HD910-U30-K7
Mô tả ngắn
1/2.8” Progressive CMOS, 2.1 megapixel
USB 3.0 high speed transfer
10x optical zoom * 12x digital zoom
Support YUY2 1080p30 and 720p30, 640*480 etc
HOV: 60.9°-5.86°
VISCA, PELCO-D, UVC1.5 protocol
Hotline: 0918 642 886

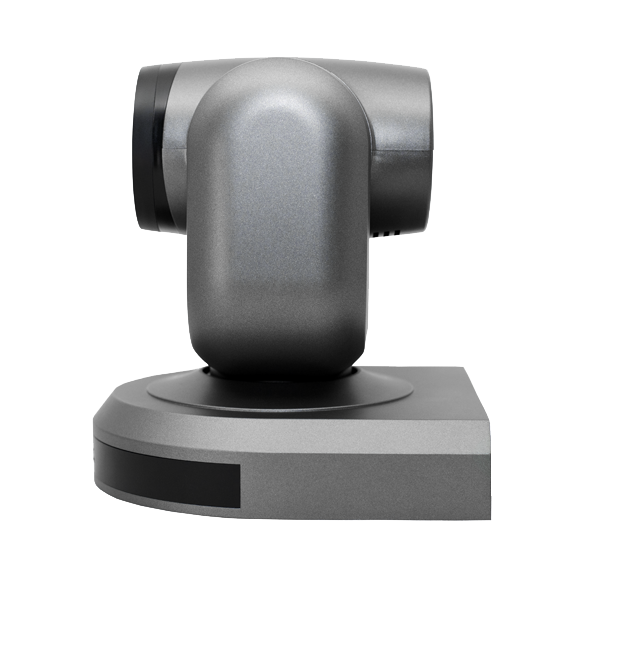

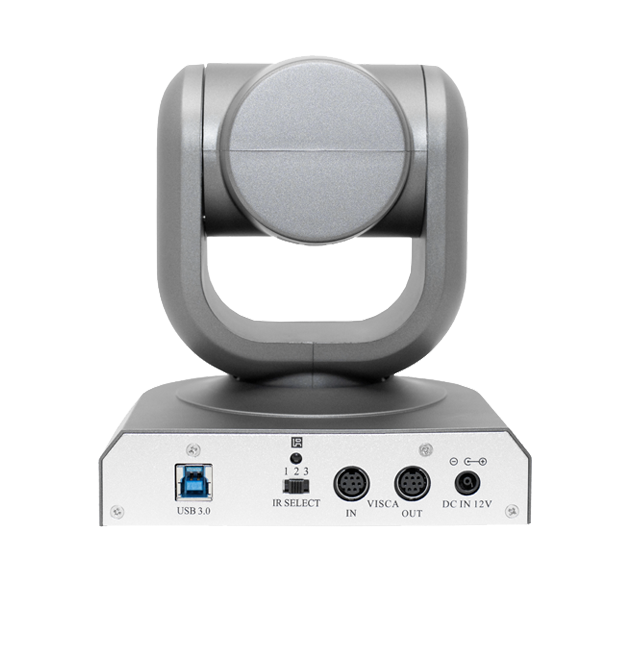

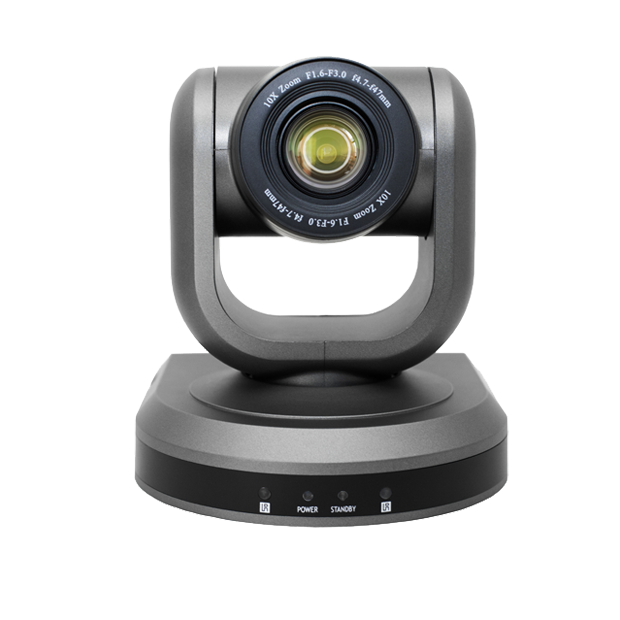

Camera Oneking USB 3.0 HD910-U30-K7
High Performance HD Video camera achieved 1080p@30 high quality images over USB 3.0 interface, which equipped with 60.9 degree Wide view Angle 10x optical zoom lens, ideally suitable for the conference room, video studio, auditorium, house of worship, government buildings, and for remote and e-learning applications.
Features:
-
1/2.8” Progressive CMOS, 2.1 megapixel
-
USB 3.0 high speed transfer
-
10x optical zoom * 12x digital zoom
-
Support YUY2 1080p30 and 720p30, 640*480 etc
-
HOV: 60.9°-5.86°
-
VISCA, PELCO-D, UVC1.5 protocol
|
Model No |
HD910-U30-K7 |
|
Sensor |
1/2.8″ Progressive CMOS |
|
Effective Pixel |
2.1 Megapixel |
|
Zoom |
10 Optical X 12 Digital zoom |
|
Video Output Format |
YUY2 108030fps, 720p30fps, 800x600, 640x480 |
|
Hov |
60.9°- 6.43° |
|
Video Output Interface |
USB 3.0 interface |
|
Focus |
f=4.7-47mm F=1.6-3.5 |
|
Iris |
Auto/Manual |
|
SN Ratio |
>50db |
|
Minimum illumination |
0.5 Lux at F1.6 |
|
White Balance |
Auto/Manual/Indoor/Outdoor/Onepush/ATW |
|
Gain Control |
Auto |
|
Back light compensation |
On/Off |
|
Electronic Shutter |
1/60- 1/10,000S |
|
Communication Interface |
RS232C, USB485 (Bidirectional) |
|
Communication Protocol |
VISCA, PELCO-D |
|
Baud Rate |
9600/38400bps |
|
Touring Line |
4 |
|
Preset Position |
64 |
|
OSD Menu |
Support |
|
Image Flip |
Support |
|
Speed Match |
Support |
|
Pan Movement |
355° pan movement, 1-60°/S |
|
Tilt Movement |
-45°~+90°, 1-60°/S |
|
Auto Pan Scanning |
Support |
|
Boundary Scan |
0-355°（Programmable） |
|
Remoter Control |
IR Wireless remote control P/T/Z |
|
Power Supply |
DC12V ,2A |
|
Consumption |
12w |
|
Work Temperature |
0℃～50℃ |
|
Environmental Humidity |
0-95%RH |
|
Length X width X high |
145x148x161mm / 310x240x230mm(NET/PACKAGE) |
|
Weight |
1.13kg/2.49 lbs |
|
Mounting |
Desktop, Tripod, Wall mounting, Ceiling mounting |
|
Suggest Room Size |
medium |
|
Color |
Black, White |
