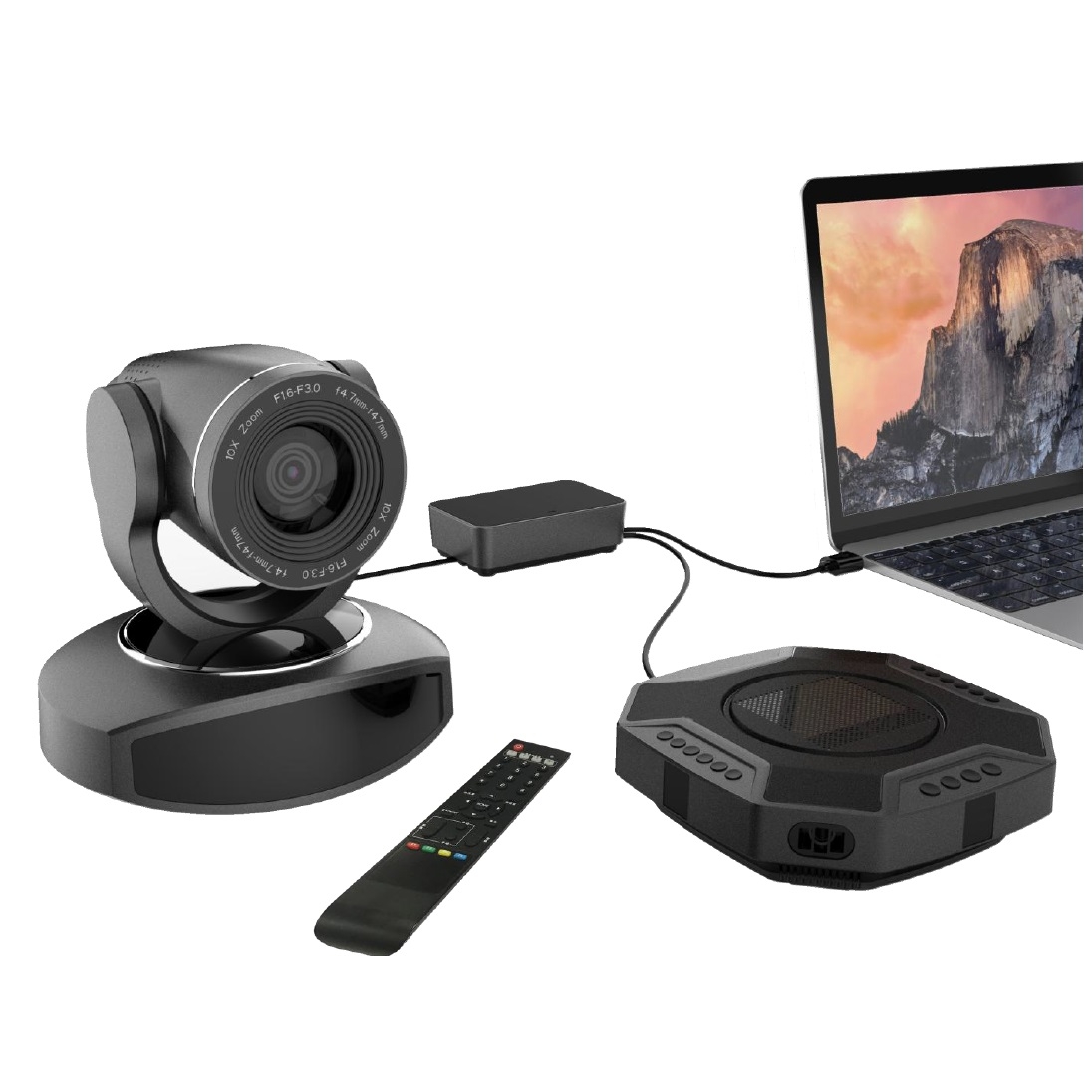

Video conferencing room solutions VA200 series
Mô tả ngắn
1/2.8 inch, 2.07 megapixel high-quality CMOS sensor.
Resolution up to 1920x1080.
5x or 10x zoom lens, with 72.5 ° wide view angle without distortion
Low Noise CMOS effectively ensure high SNR of camera video
Multiple Audio/Video Compression Standard
Support H.264/H.265 video compression
Hotline: 0918 642 886
Key Features:
- It adopts 1/2.8 inch, 2.07 megapixel high quality CMOS sensor. Resolution is up to 1920x1080.
- 5x. 10x zoom lens, with 72.5 ° wide view angle without distortion.
- Leading auto focus algorithm makes lens a fast, accurate and stable auto-focusing.
- Low Noise CMOS effectively ensure high SNR of camera video. Advanced 2D/3D noise reduction technology is also used to further reduce the noise, while ensuring image sharpness.
- Adopting high accuracy step motor and motor driving controller to make extremely quiet and smooth rotation. Multiple Audio/Video Compression Standard.
- Support H.264/H.265 video compression.
- Support AEC(Acoustic Echo Cancellation, AGC(Automatic Gain Control), NC(Bidirectional noise compression), Automatic Direction finding Technology of Intelligent microphone(EMI), Zero damage compression in vocal full frequency domain
- Built-in 4 single-point microphones, composed of 360-degree omni-directional audio-pickup, 6m sound-pickup diameter, external microphone is available, up to 10m sound-pickup diameter .
- USB plug-and-play, supports various online conference software platforms such as WeChat, Skype for Business, Zoom, Vidyo, etc.
- Support Windows, Andriod, IOS and Linux
- Support Bluetooth connection and hands-free conference calls on mobile phones.
- Speaker volume reaches 95dB, digital adjustment for 16 levels speaker volume.
- Built-in infrared receivers. The IR remote controller is available for every corner of the conferencing site.
- Built-in Up/Down, Left/Right, Answer, Hang up, Bluetooth, Presets, and other keys
- Centralized connecting with the centralized controller VA200-H, the wiring is simpler and more nice.
- Easy to use, install and maintain.
|
Spec/Model NO. |
VA200-V |
|
Sensor |
1/2.8 inch high quality HD CMOS sensor |
|
Effective Pixels |
2.07M, 16: 9 |
|
Video Format |
176×144/320×240/320×180/352×288/640×480/720×480/720×576/640×360/ 800X600/960X540/1024X576/1024X768/1280X720/1920X1080P30/25/20/15/10/5 |
|
Optical zoom lens |
5x, 10x optical zoom, f＝3.1～15.5mm |
|
View angle |
20°9(tele) 83.7°(wide) |
|
Aperture value |
F1.8 – F2.8 |
|
Digital Zoom |
X10 |
|
Minimum Illumination |
0.5Lux(F1.8, AGC ON) |
|
DNR |
2D﹠3D DNR |
|
White Balance |
Auto / Manual/ One Push/ 3000K/ 3500K/ 4000K/ 4500K/ 5000K/ 5500K/ 6000K/ 6500K/ 7000K |
|
Focus |
Auto/Manual/One Push |
|
Aperture/Electronic Shutter |
Auto/Manual |
|
BLC |
ON/OFF |
|
WDR |
OFF/ Dynamic level adjustment |
|
Video Adjustment |
Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve |
|
SNR |
>55dB |
|
Rotation angle |
Pan: -125°～+125°, Tilt:-30°～+30° |
|
Control speed |
Pan: 0.1 ～65°/sec, Tilt:0.1～35°/sec |
|
Preset speed |
Pan: 65°/sec, Tilt: 35°/sec |
|
Dimensions |
151.64mm×131.25mm×154.5mm (L×W×H) |
|
Spec/Model NO. |
VA200-A |
|
Voice technical parameters |
Acoustic Echo cancellation(AEC)>65dB Echo length cancellation: ≥400ms Bidirectional noise compression(NC): <25dB Automatic Direction finding Technology of Intelligent microphone(EMI) Automatic gain control(AGC) |
|
Audio parameters |
Microphone frequency response: 100Hz-22KHz Speaker frequency response: 100Hz-22KHz Speaker volume: 95dB at the most Microphone sound-pickup diameter: 6 meters, 360 degrees full range |
|
Bluetooth |
Bluetooth devices available |
|
IR Reception |
Angle: 360° Distance: 10m IR Transparent transmission available |
|
External Mic (optional) |
2 external microphones cam be connected, making the sound-pickup diameter up to 10 meters |
|
Dimensions |
200mm×200mm×55.9mm (L×W×H) |
|
Spec/Model NO. |
VA200-H |
|
Interface |
Mini DIN6 ×2 Power interface×1 Power switch×1 Mini USB interface×1 |
|
Power supply |
EC3800 plug(DC12V) Adapter input AC110V-AC220V, output DC12V/1.5A |
|
Data line |
Mini DIN6 data line ×2 Length: 5m(10m/15m for options) |
|
USB cable |
USB2.0 cable Length: 3m |
|
Compatibility |
Support Windows, Andriod, IOS and Linux Drive-free automatic recognition of cameras, microphones and speakers Compatible with Zoom, Lynch, Vidyo, etc. |
|
Dimensions |
100mm×62mm×27mm (L×W×H) |
|
Accessories |
Power adapter, USB2.0 cable, Remote controller, Two connection cables, User manual, Warranty Card |
