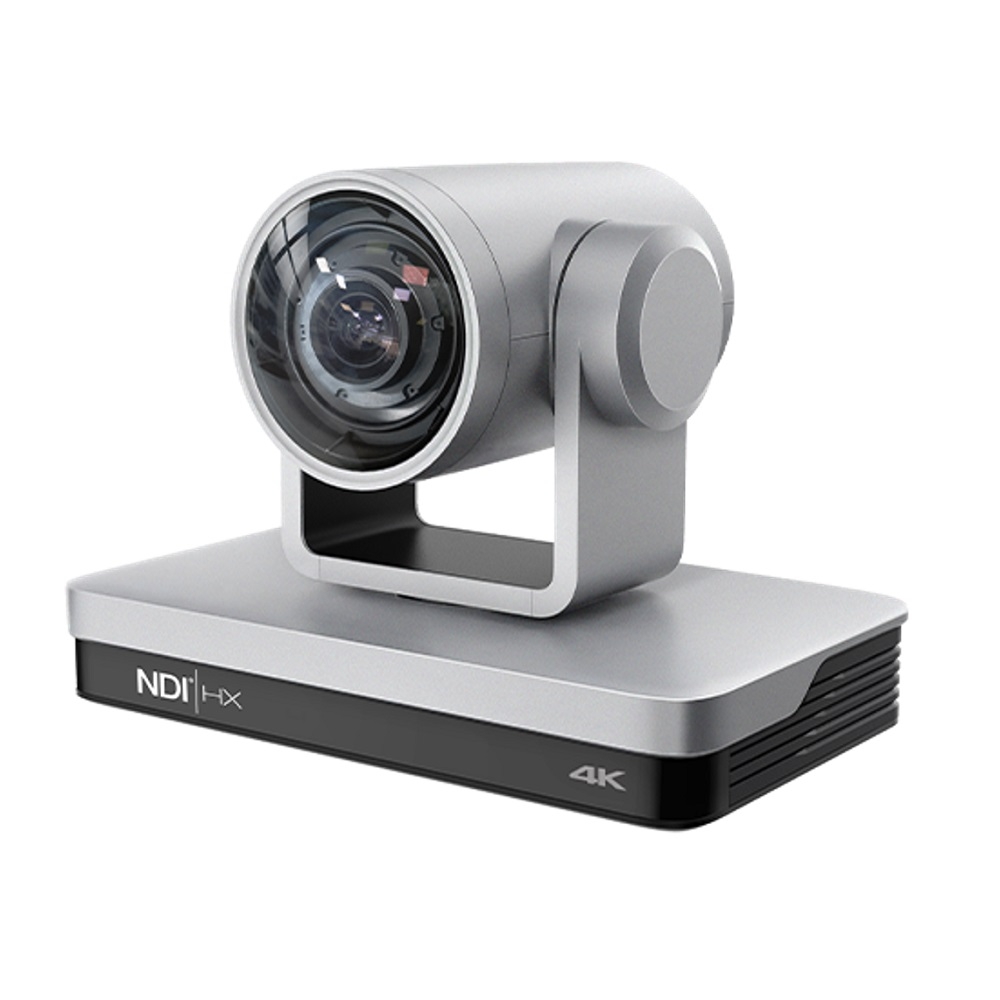

4K NDI UHD PTZ Camera UV430
Mô tả ngắn
UV430-NDI series is a brand new 4K ultra HD camera with NDI®|HX license, which support for the HD image and is compatible with 4K60, 4K30, 4K25, 1080p60, 1080p50, 1080p30, 1080p25. With powerful functions like low latency, anti-interference, and two-way transmission, UV430-NDI supports for image adjustment including AWB, AE, and AF.
Hotline: 0918 642 886
4K NDI PTZ Video Conferencing Camera
UV430-NDI series is a brand new 4K ultra HD camera with NDI®|HX license, which support for the HD image and is compatible with 4K60, 4K30, 4K25, 1080p60, 1080p50, 1080p30, 1080p25. With powerful functions like low latency, anti-interference, and two-way transmission, UV430-NDI supports for image adjustment including AWB, AE, and AF.
Superb High-definition Image
Sony high quality CMOS image sensor allows UV430-NDI to output image at 4K resolution and 60 frames per second. So the camera is capable of capturing detailed expression and movement to deliver true-to-life image.
AI-powered Auto Tracking Technology
ZONES TRACKING: After you preset different tracking zones, the camer will track and capture the target seamlessly between the presetting zones. Zone Tracking technology enables you to have a wide range of shooting angle with no dedicated operators required.
PRESENTER TRACKING: Once there is a person being detected, the camera would automatically follow the movements, and zoom in/out to focus on the target. That is perfect for teaching recording, virtual meeting and any other streaming you want to deliver on your own.
High Precision and Silent PTZ Movement
Equipped with high precision PTZ, UV430-NDI boasts speedy and silent PTZ movement.
|
Model |
UV430E0-NDI |
UV430E2-NDI |
UV430E3-NDI |
|
4K NDI PTZ Camera |
|||
|
Image Sensor |
1/2.5 inch SONY CMOS Image Sensor |
1/2.5 inch SONY CMOS Image Sensor |
1/2.5 inch SONY CMOS Image Sensor |
|
Focus |
f=3.85 mm～ 43.06 mm ±5% |
f=7.1 mm～ 171.95 mm ±5% |
f=6.91 mm～ 214.64 mm ±5% |
|
Viewing Angle |
H：7.59˚（N）～ 80.4˚（W） |
H：2.5˚（N）～ 59.2˚（W） |
H：1.98˚（N）～ 59˚（W） |
|
Iris Value |
F1.8 ～ F3.56±5% |
F1.61 ～ F5.19±5% |
F1.35 ～ F4.6±5% |
|
Effective Pixel |
8.51M 16:9 |
||
|
Video Signal |
HDMI |
||
|
3840*2160P60/50/25/59.94/29.97、1080P60/50/ 30/25/59.94/29.97、1080I60/50/59.94; 720P60/50/59.94 |
|||
|
SDI |
|||
|
1080P60/50/30/25/59.94/29.97、1080I60/50/59.94、720P60/50/59.94 |
|||
|
USB2.0 |
|||
|
MJPG：3840*2160/1920*1080/1280*720 /1024*768 /1024*576/800*600/720*576/720*480/704*576/640*480 /640*360 /352*288/320*240P30 |
|||
|
Optical Zoom |
12x |
25X |
31X |
|
Digital Zoom |
15x |
15x |
15x |
|
AI |
Real-time Tracking, Zone Tracking |
||
|
Back Panel |
HDMI、SDI、LAN（POE）、USB2.0、A-IN、RS232-IN、RS232-OUT、RS422（Compatible with RS485）、Rotary Dip Switch、DC12V Power Supply、Power Switch |
||
|
Accessory |
Power Adapter, RS232 Cable, USB2.0 Cable, Remote Control, User Manual |
||
