Camera Minrray UV950A-12-ST:
FULL HD Conferencing Camera, 1080P/2MP
Lens: 12X optical Zoom
Interface: 3G-SDI,DVI(HDMI),LAN,RS232(IN/OUT),RS485,A-IN

liên hệ mua hàng
Hotline: 0918 642 886
  • Superb High-definition Image
    UV950A employs 1/2.8 inch high quality CMOS sensor. Resolution is up to 1920×1080 with frame rate up to 60fps.
  • Various Optical Zoom Lens
    UV950A has 12X/20X/30X optical zoom lens for options. 12x zoom lens is with 72.5 ° wide view angle without distortion.
  • Leading Auto Focus Technology
    Leading auto focus algorithm makes lens a fast, accurate and stable auto-focusing.
  • Low Noise and High SNR
    Low Noise CMOS effectively ensure high SNR of camera video.Advanced 2D/3D noise reduction   technology is also used to further reduce the noise, while ensuring image sharpness.
  • Audio Input Interface (for future development)
    Support 16000,32000,44100,48000 sampling frequency and AAC,MP3,PCM audio coding.
  • Wide-range, Quiet and Quick Pan/Tilt Mechanism
    By adopting step driving motor mechanism,UV950A camera works extremely quiet and moves smoothly.
  • Multiple Audio/Video compression
    Support H.264/H.265 video compression;AAC, MP3 and PCM audio compression; Support compression of resolution up to 1920×1080 with frame up to 60fps and 2 channel 1920x1080p with 30fps compression.
  • Multiple Network Protocol
    Support ONVIF,RTSP,RTMP protocols and support RTMP push mode,easy to link streaming media server (Wowza,FMS)
  • Wide Application
    Tele-education,lecture capture,Webcasting, Videoconferencing,Tele-training,Tele-medicine,    Interrogation and Emergency command systems.
  • Low-power sleep function
    Support low-power sleep/wake up,the consumption is lower than 400mW under sleep mode.

Model

UV950A-12

UV950A-20

UV950A-30

Camera Parameter

Optical Zoom

12X

f=3.9~46.1mm

20X

f=55.7~110mm

30X

f=4.3~129mm

Sensor

1/2.8 inch high quality HD CMOS sensor

Effective Pixels

16: 9  2.07 megapixel

Video Format

ST video format

1080P60/50/30/25/59.94/29.97;1080I60/50/59.94;720P60/50/30/25/59.94/29.97

U3.0 interface video format

1)USB3.0: 1920X1080P60/50/30/25;1280X720P60/50/30/25;960X540P30;640X360P30;640X480P30;352X288P30;960X540P30

2) USB3.0 compatible with USB2.0 :960X540P30; 640X360P30; 1280X720P10/15; 720X576P50; 720X480P60; 640X480P30; 352X288P30.

View Angle

6.3°(tele)–72.5°(wide)

3.3°(tele)–54.7°(wide)

4.3°(tele)–54.7°(wide)

AV

F1.8 ~ F2.4

Digital Zoom

10X

Minimum Illumination

0.5Lux (F1.8, AGC ON)

DNR

2D & 3D DNR

White Balance

Auto / Manual/ One Push/ 3000K/ 4000K/5000K/6500K

Focus

Auto/Manual

Aperture

Auto/Manual

Electronic Shutter

Auto/Manual

BLC

ON/OFF

WDR

OFF/ Dynamic level adjustment

Video Adjustment

Brightness,Color,Saturation,Contrast,Sharpness,B/W mode,Gamma curve

SNR

>55dB

Input/Output Interface

Video Interfaces

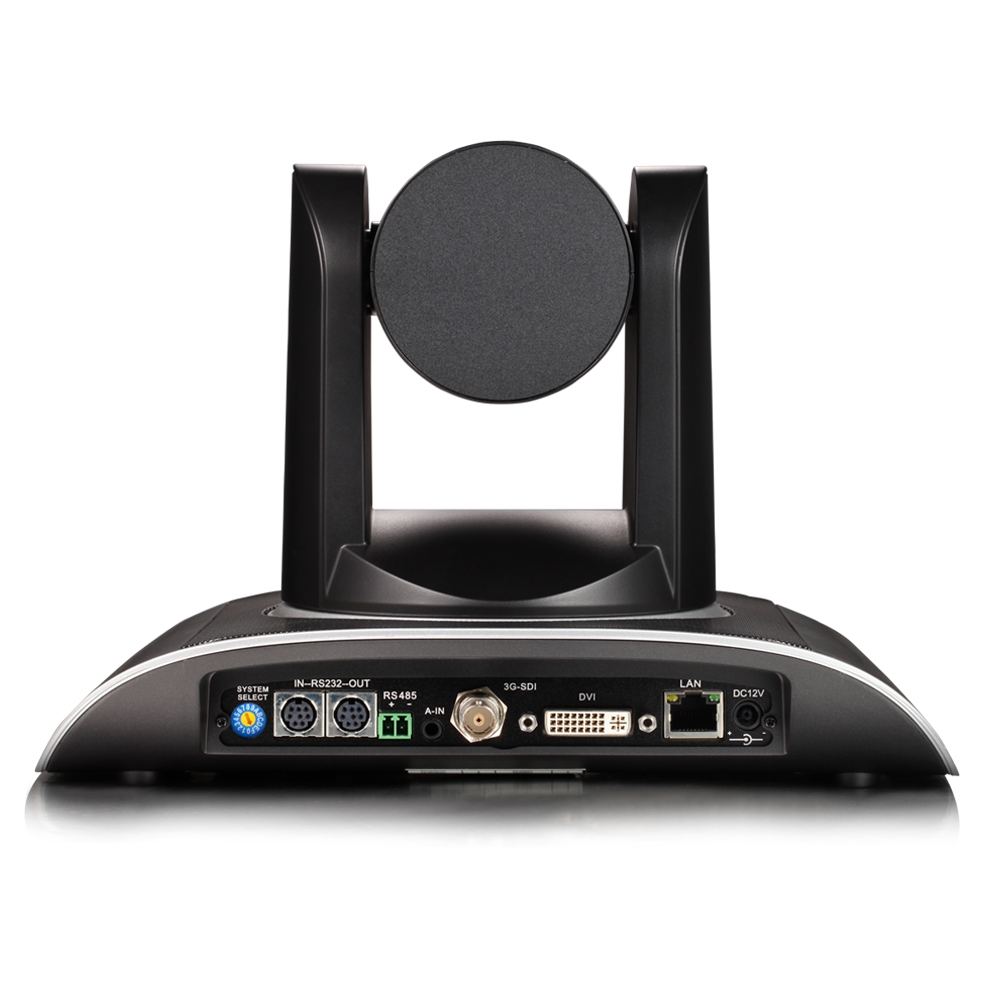

UV950A-12/20/30-ST Model:3G-SDI,DVI(HDMI),LAN,RS232(IN/OUT),RS485,A-IN

UV950A-12/20/30-U3 Model:USB3.0,DVI(HDMI),LAN,RS232(IN)

UV950A-12/20/30-U2U3 Model: USB3.0,USB2.0, HDMI, LAN, RS232(IN), A-IN

Image Code Stream

Dual stream output

Video Compression Format

H.264, H.265

Control Signal Interface

RS-232 Ring through RS232 output

Control Protocol

VISCA/Pelco-D/Pelco-P; Baud Rate: 115200/9600/4800/2400bps

Audio Input Interface

Double track 3.5mm linear input;

Audio Compression Format

AAC/MP3/PCM Audio compression

HD IP Interface

100M IP port(100BASE-TX); 5G WiFi (optional),

Support Visca protocol control through IP port.

Network Protocol

RTSP/RTMP,ONVIF,GB/T28181

Power Interface

HEC3800 outlet (DC12V)

PTZ Parameter

Pan Rotation

±170°

Tilt Rotation

-30°~+90°

Pan Control Speed

0.1 -100°/sec

Tilt Control Speed

0.1-45°/sec

Preset Speed

Pan: 100°/sec,Tilt: 45°/sec

Preset Number

255 presets (10 presets by remote controller)

Other Parameter

Supply Adapter

AC110V-AC220V to DC12V/1.5A

Input Voltage

DC12V±10%

Input Current

1A(Max)

Consumption

12W (Max)

Store Temperature

-10℃~+50℃

Store Humidity

20% – 95%

Working Temperature

-10℃~+50℃

Working Humidity

20%–80%

Dimension

258mmX172mmX168mm

Weight

1.54KG

Remote Operation (IP)

Remote Upgrade,Reboot and Reset

Accessory

power supply,RS232 control cable,remoter,manual,warranty card,bracket(optional)
