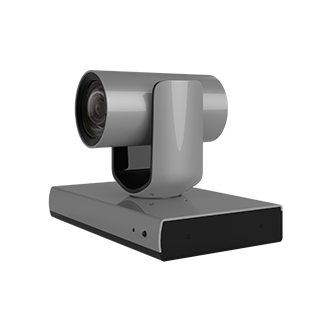

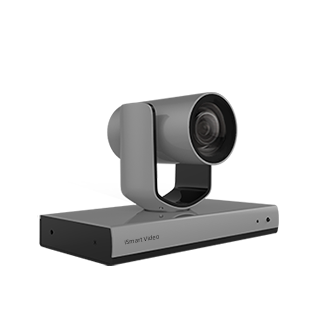

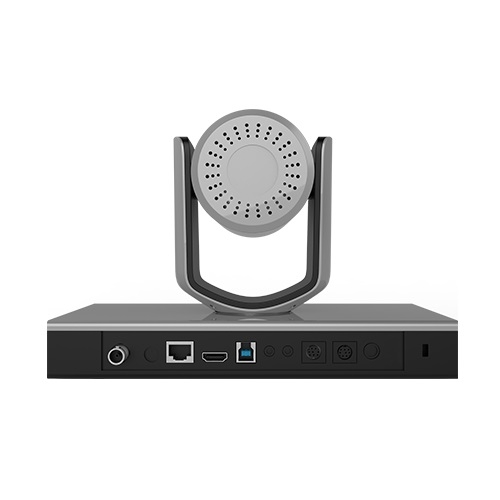

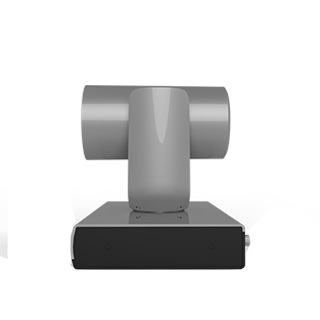

Ismart 4K HD PTZ Camera AMC-G500
Image Sensor: 1/2.8”4K CMOS, 8.46MP
Optical Zoom: 12x
FOV: Horizontal 81°~7.6°
Max. Resolution: 4KP60
Interface: HDMI, 3G-SDI (optional), HD-BaseT (optional)
AMC-G500 is equipped with 4K UHD CMOS, 12X wide-angle lens with no distortion, as well as rich interfaces such as RJ45, HDMI, SDI, and USB etc. It's widely used in various applications such as education, meeting and broadcasting etc.
Features:
- Fast, precise and smooth focus;
-1/2.8" 4K CMOS, 8.46MP brings ultra HD video of superb clarity, quality;
- High quality 12X optical 4K lens, FOV up to 81°, no distortion;
- H.264/H.265, 4KP60, POE;
- HDMI 2.0, supporting 4KP60;
- USB2.0 with UVC/UAC protocol, supporting 4KP30 compressed video;
- RS232 in/out, VISCA protocol;
- 1 channel LINE IN.
Model |
AMC-G500 |
Camera |
|
Image Sensor |
1/2.8”4K CMOS, 8.46MP |
Focal Lens |
f=3.4mm~40.3mm |
Iris |
F1.8(Wide)~3.6(Tele) |
Optical Zoom |
12x |
FOV |
Horizontal 81°~7.6° |
Image |
Auto focus, auto exposure, auto white balance |
DNR |
2D & 3D,≥ 55dB |
Video Formats |
4KP60/P50/P30/P25, 1080P60/P50/P30/P25, 720P60/P50 |
Video Compression |
H.264/H.265/MJPEG |
WDR |
Backlight / dynamic range |
Function |
|
White Balance |
Auto |
Exposure |
Auto |
Focus |
Manual |
PTZ |
|
Pan Range |
-130° ~ +130° |
Tilt Range |
-30° ~ +90° |
Pan Speed |
0.2° ~ 80°/s |
Tilt Speed |
0.2° ~ 60°/s |
Inversion |
Support |
Preset Number |
64 |
Interface |
|
HDMI |
Hardware interface:1 channel HDMI 2.0; Video Resolution: 4KP60/P50/P30/P25, 1080P60/P50/P30/P25, 1080I60/I50, 720P60/P50 |
Network |
Hardware interface:1 channel RJ-45, 10M/100M/1000M self-adaptation ethernet port, support POE (optional); 1. Video Format: H264, H256; 2. Video Resolution: 4KP60/P30/P25,1080P30/P25,720P30/P25,360P30/P25 |
USB |
Hardware interface:1 channel USB2.0 1. UVC1.5 protocol; 2. UAC, Video Format: H264/MJPEG Video Resolution: 4KP30/P25, 1080P30/P25, 720P30/P25,360P30/P25 |
3G-SDI (optional) |
Hardware interface:1 channel 3G-SDI (optional); Video Resolution: 1080P60/P50/P30/P25,1080I60/I50,720P60/P50 |
HD-BaseT (optional) |
Hardware interface:1 channel HD-BaseT ; Video Resolution: 4KP30/P25,1080P60/P50/P30/P25,1080I60/I50,720P60/P50 |
Control Interface |
1 channel RS-232 IN, 1 channel RS-232 OUT |
Dial Switch |
Rotate to set video format |
Power |
DC12V |
Genera |
|
Control Protocol |
VISCA |
Power Consumption |
<18W |
Working environment |
Temperature: 0 ~ 40°C, humidity: 10%RH ~ 90%RH |
Dimension(LxWxH) |
245mm x 146mm x 164mm |
Weight |
<2kg |
Color |
Grey |
