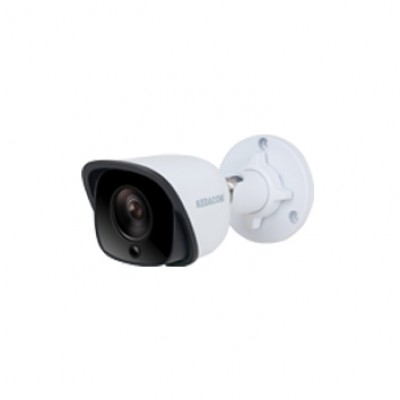

Network Bullet Mini Fixed IR 2.0M Ultra WDR Starlight, model: IPC2253-FNB-PIR40
Mô tả ngắn
2.0M, 1/2.8", H.265 / H.264, 1920×1080@30fps / D1lens option: 3.6mm (-L0360), 6mm (-L0600) 120dB Ultra WDR, Starlight 40M Infrared Distance, IP67, Bracket included1 x Micro SD card slot (Max. 128GB)DC12V (Power Adapter Not Included) / PoE, 7W.
Hotline: 0918 642 886
Excellent Image Quality
-
2.0 Megapixel 1/2.9’’ Progressive Scan CMOS Sensor
-
High definition and smooth picture, 1080p@30fps
-
H.265 video codec, saves up to 50% bandwidth and storage
-
Low illumination, 0.03lux with color picture
-
WDR / HLC / 3D noise reduction
Mini size
-
0.6 kg / 1.32lb (Gross Weight)
-
161.5 x 62 x 57mm / 6.36’’ x 2.44’’ x 2.24’’
Intelligent Functions
-
Motion detection / Tampering / Guard line / Enter guard area / Exit guard area
Integrated High Efficiency IR
-
Industrial IR LED with long operational lifespan
-
40m IR distance
-
Smart IR function
A Variety of Installation Modes
-
Supports 90°, 180°, 270° image rotation
Abundant Functions and Features
-
Micro SD card slot, supports Automatic Network Replenishment (ANR)
-
Dual-stream (1080p + D1)
-
Anti-fog glass
-
-40°C ~ 70°C operation temperature
-
PoE
-
IP67
| Model | IPC2253-HNB-PIR40 |
| Camera | |
| Image Sensor | 1/2.9’’ progressive scan CMOS |
| Pixels | 2.0 Megapixel |
| Min. Illumination | Color: 0.03lux |
| B/W: 0lux with IR | |
| Shutter Speed | 1 ~ 1/30,000s |
| Day / Night | Auto (ICR) / Color / B/W |
| Wide Dynamic Range | Digital WDR |
| S/N Ratio | >50dB |
| White Balance | Auto / Manual |
| Gain Control | Auto / Manual |
| Backlight Compensation | Off / WDR / BLC / HLC |
| Lens | |
| Mount Type | M12 |
| Focal Length | 3.6mm (-L0360) / 6mm (-L0600) |
| Angle of View | 78.6° (-L0360) / 53.2° (-L0600) |
| Infrared | |
| IR Distance | 40m (-L0360, -L0600) |
| IR Intensity | Smart IR |
| Video | |
| Compression | H.265 / H.264 / MJPEG |
| Image Resolution | Main stream: 1080p |
| Secondary stream: D1 | |
| Frame Rate | Main stream: 1080p@30fps |
| Secondary stream: D1@30fps | |
| Bitrate | 64kbps ~ 8Mbps |
| Bitrate Control | VBR / CBR |
| Dual-stream | Supported |
| Caption | Date and time / Alarm / Customized |
| Privacy Masking | Up to 4 zones |
| Motion Detection | Up to 4 zones |
| ROI | Supported |
| Digital Noise Reduction | 3D noise reduction |
| Digital Defog | Supported |
| Image Flip | Flip / Mirror / Rotation at 90°, 180°, 270° |
| Network | |
| Network Protocols | TCP/IP, UDP, HTTP, DHCP, DNS/DDNS, RTP/RTCP, RTSP, PPPoE, FTP, VSIP, UPnP, 802.1x, NAT, QoS, SMTP, IPv4, IPv6 (optional) |
| User Interface | IPC Control (IE, Firefox, Chrome) |
| Max. User Access | Max. 10 Users (includes 2 internal) |
| Application Programming | ONVIF (Profile S, Profile G), GB/T 28181-2011, API, CGI |
| Automatic Network Replenishment (ANR) | Supported |
| Alarm | |
| Alarm Triggers | Network disconnect / Disk full / Disk error |
| Intelligent | Motion detection / Tampering / Guard line / Enter guard area / Exit guard area |
| Alarm Events | Alarm report / Recording / Text overlay / Snapshot / Email notice |
| Interfaces | |
| Ethernet | 10/100M, RJ45 interface |
| Memory Slot | Micro SD card slot, supports up to 128GB |
| Environmental | |
| Operating Temperature | -40°C ~ 70°C / -40°F ~ 158°F |
| Operating Humidity | 10% ~ 95% |
| Protection Level | IP67 |
| Electrical | |
| Power | 12V DC ± 10% / PoE (IEEE802.3af) |
| Power Consumption | Max. 7W |
| Mechanical | |
| Weight | 0.6 kg / 1.32lb (Gross Weight) |
| Dimensions | 161.5 x 62 x 57mm / 6.36’’ x 2.44’’ x 2.24’’ |
| Mounting Bracket | Bracket included |
